Building in Dify: an agent with its own knowledge base
Guide 2 for the AI Agents workshop
LeX Consultancy B.V. · 20 September 2026
In guide 1 you built a workflow: you decided every step. Now you build an agent. It gets a goal, an instruction and a knowledge base with your own document, and decides for itself when to search in it. At the end you have a chatbot with its own web address that answers questions about your document and honestly says when the answer is not in there.
This guide follows the cloud version of Dify as it looked on 20 September 2026. Dify changes fast: if your screen differs, follow what you see, not what is written here.
How to read this guide
| Form | Meaning |
|---|---|
| 1. 2. 3. | What you do: click, choose, open |
| Bold | A button, menu or field as it appears on your screen |
| Table What you type | Values you put in a form field |
| Grey box Type in | Text you type or paste literally |
| Orange box | A pitfall you would otherwise discover yourself |
| Green box Your choice | A place where you can replace our example with your own material, style or prompt |
About credits: an agent is more expensive than a workflow. In our test, creating the knowledge base plus one retrieval test cost 26 credits, and every answer from the agent 6 to 7 credits (with gpt-5-mini). With the 200 credits of a sandbox account you can follow this guide once and then ask about twenty questions. So test with purpose, not for fun.
The design card for this app
Before we started clicking, this card was filled in (the blank card is in the Design card appendix). Fill in the same five boxes for your own app; the loose version of this filled-in card is in 00-design-card/examples.
| 1. Who is it for | 2. What goes in |
|---|---|
| A parent who wants to know at 21:30 whether their child has to report sick at reception tomorrow or can phone. Has never read the school guide. | One question in plain language, in the chat. No form. |
| 3. What comes out | 4. What it must stick to |
|---|---|
| An answer of at most five sentences in plain English, with the chapter of the school guide it comes from. Or: "that is not in the school guide, please call reception". | Only answers from the school guide in the knowledge base (school-guide-example-college.pdf); invent nothing; refer on when in doubt. Knowledge base: the school guide, split per paragraph. |
5. How you know it works
| Test | What goes in | What must come out |
|---|---|---|
| 1 | What time does the first lesson start? | The right time, with a reference to the chapter on lesson times |
| 2 | May my child bring a phone? | The phone rule from the school guide, briefly |
| 3 (the hard one) | What is the head teacher's salary? | "That is not in the school guide" and a referral to reception |
Preparation
- You have done guide 1, or at least you know where Studio and Create are.
- You have a document ready that the agent must know: PDF, Word, text or markdown, at most 15 MB and one file at a time in the sandbox. Choose a document with real text, not scanned images.
- Put no personal data in it. Everything you upload sits on Dify's servers.
In this guide we use a fictional two-page school guide: school-guide-example-college.pdf. It comes with this guide. Feel free to use it; then all the example questions match.
Your choice: your own document. If you want to work with your own material straight away, pick a document that colleagues or students already ask questions about: the exam regulations, the study planner of a subject, the protocol for school trips, the manual of the student information system. Conditions: real text (not a scan), no personal data, and preferably with headings; those help with the splitting in step 2. You then adapt the questions in steps 5 and 10 to your document.
Part A. The knowledge base
Step 1. Create a knowledge base

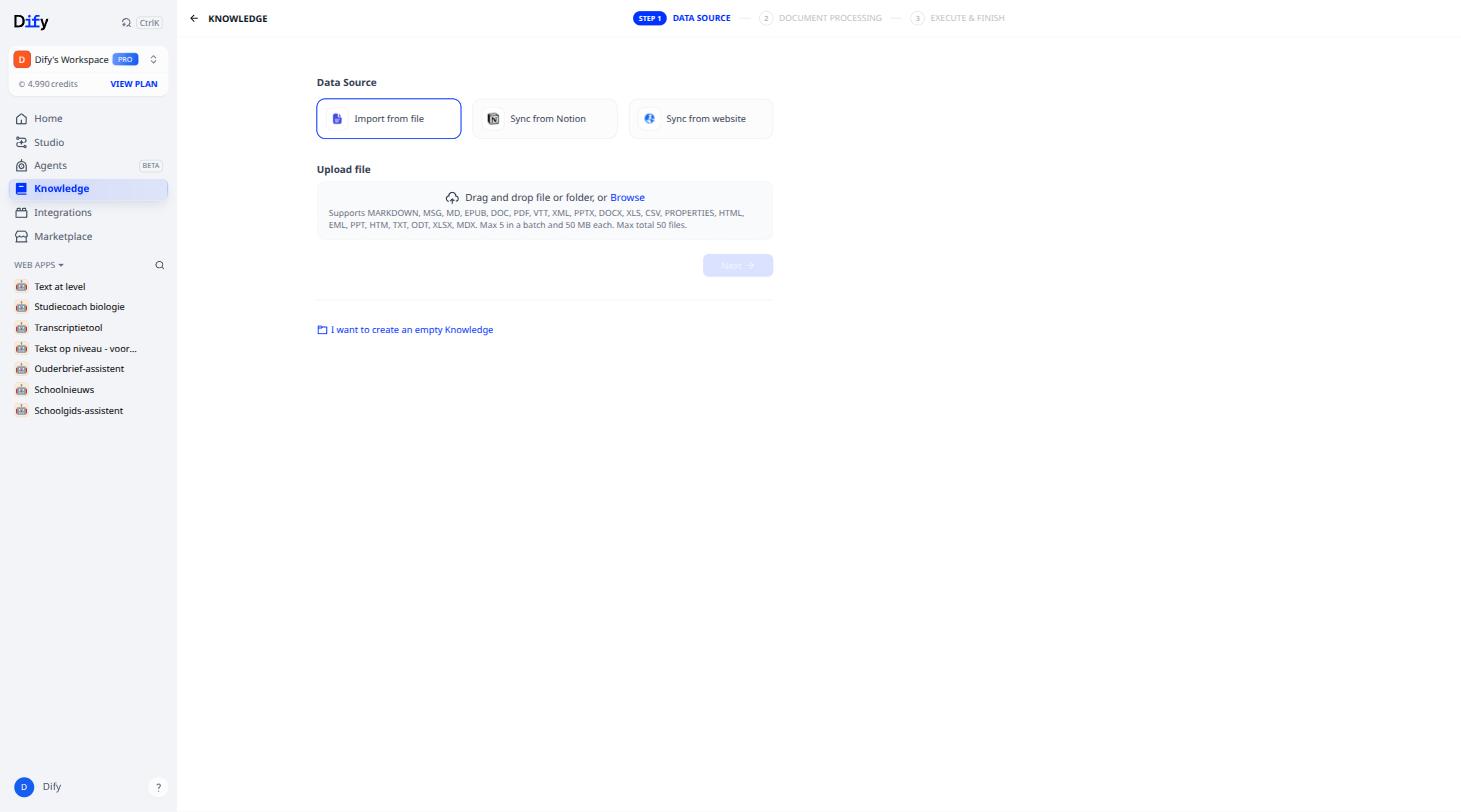

- Click Knowledge in the left-hand menu.

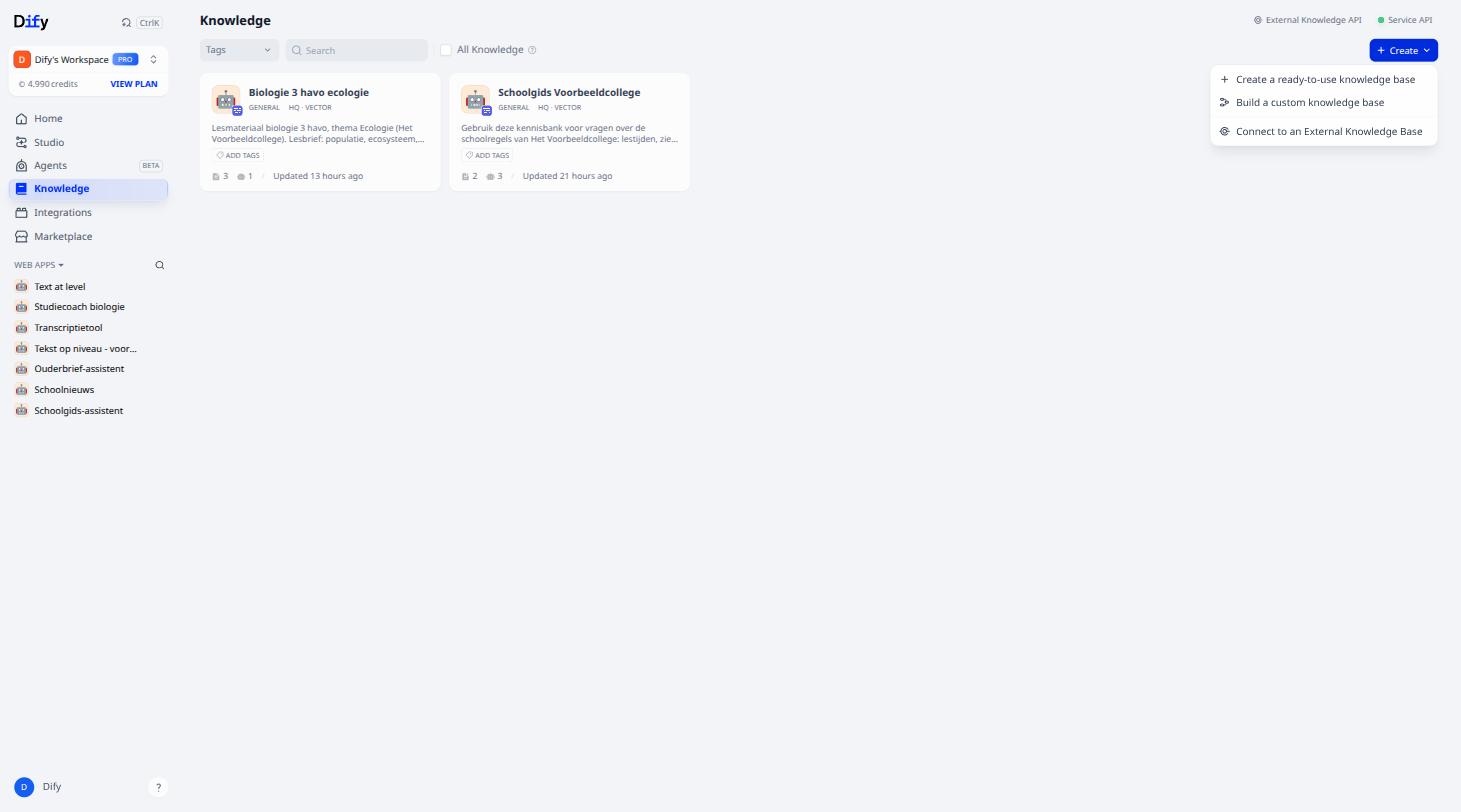

- Click Create at the top right and choose Create a ready-to-use knowledge base.
- Leave Import from file selected.

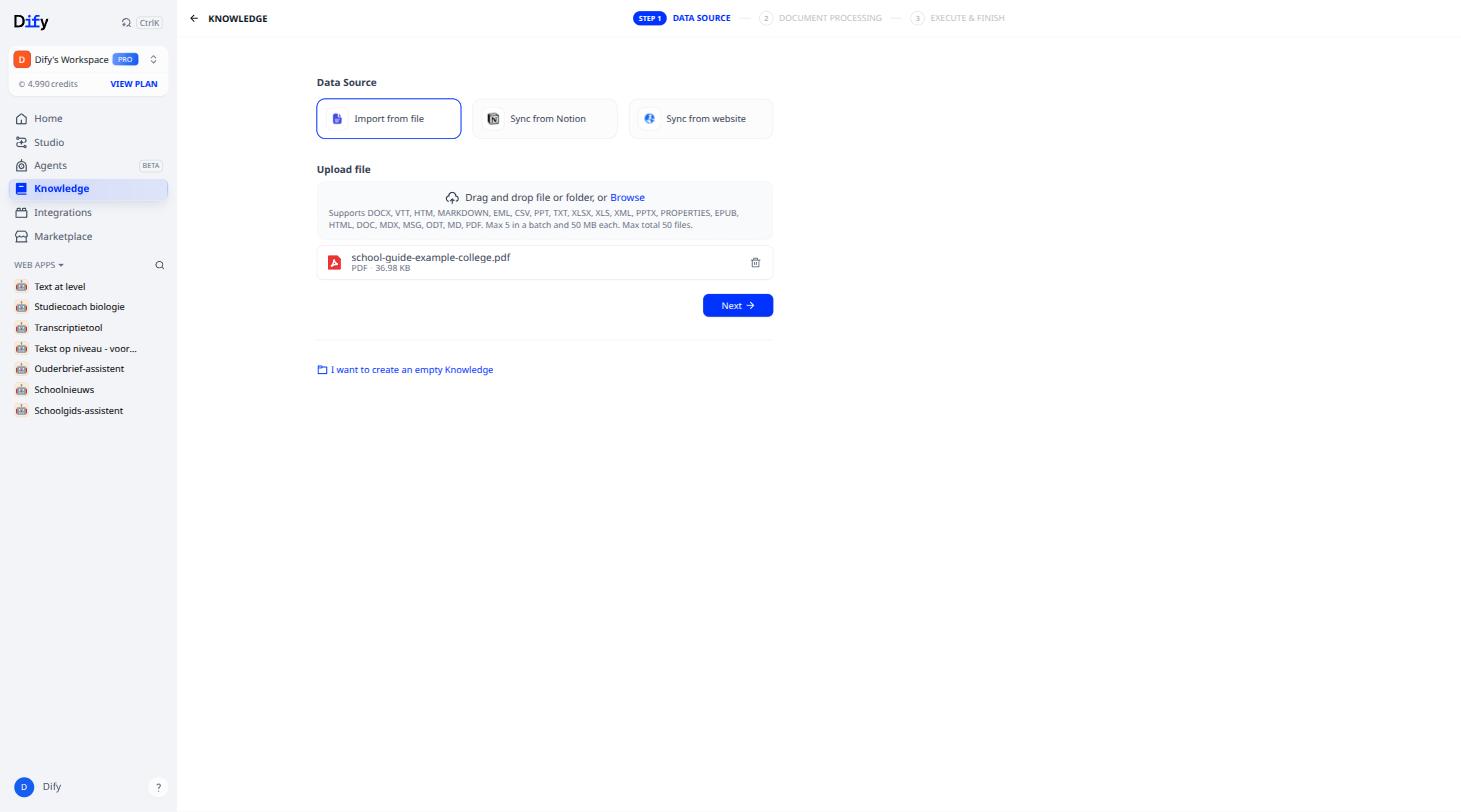

- Click Browse and choose your document, or drag it into the box.
- Click Next.

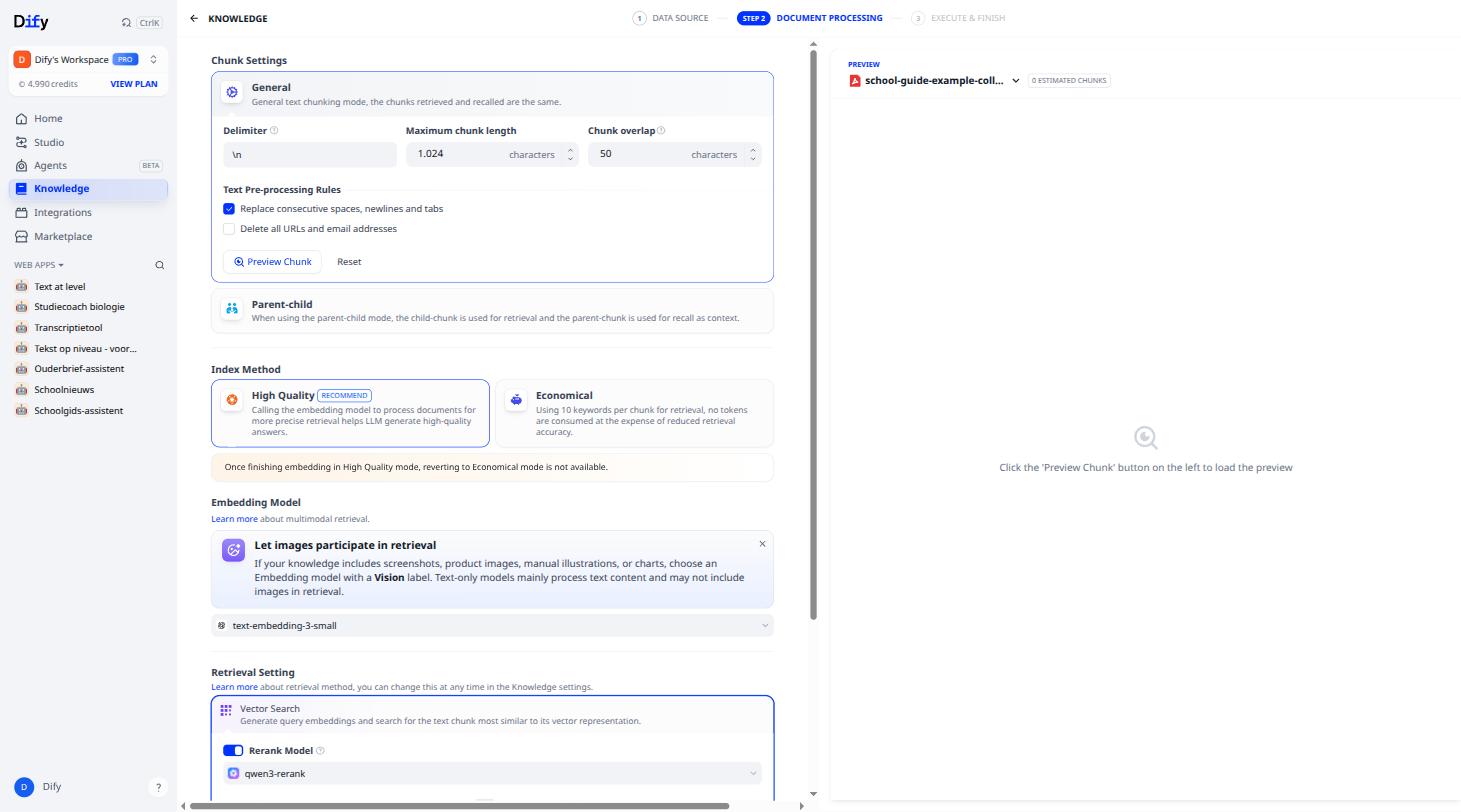

Step 2. Check how the document is split
Dify splits your document into pieces ("chunks"). Later the agent searches in those pieces, not in the whole document. Pieces that are too small contain no usable answer; this is where you check that.
- Click Preview Chunk. The pieces appear on the right.

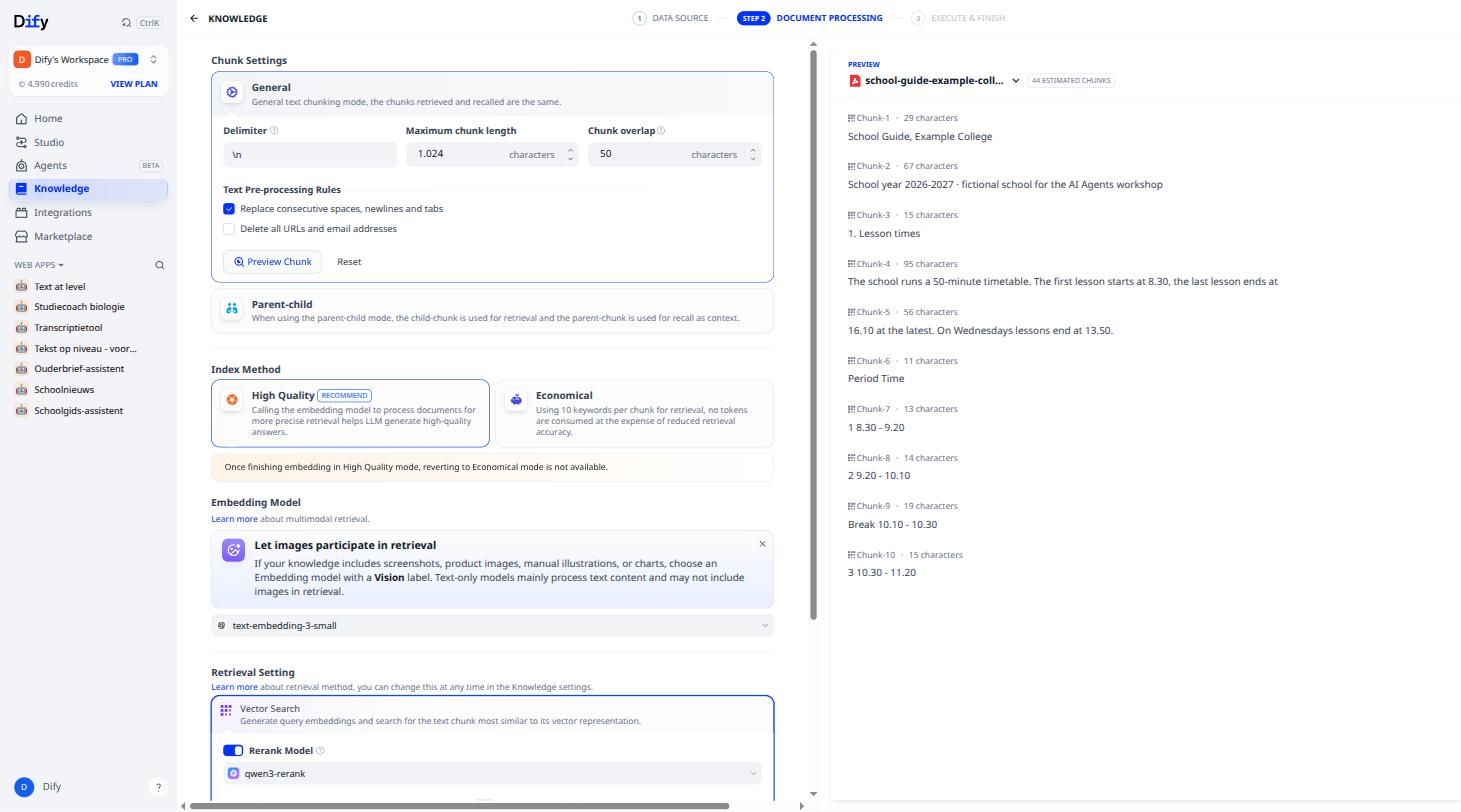

Do you see many one-line pieces, such as "1. Lesson times" or "1 8.30 - 9.20"? Then Dify is splitting at every line break. That often happens with PDFs. A twelve-character piece cannot answer a question.
- Click in the Delimiter field and replace its contents.
| Field on screen | What you type |
|---|---|
| Delimiter | \n\n |

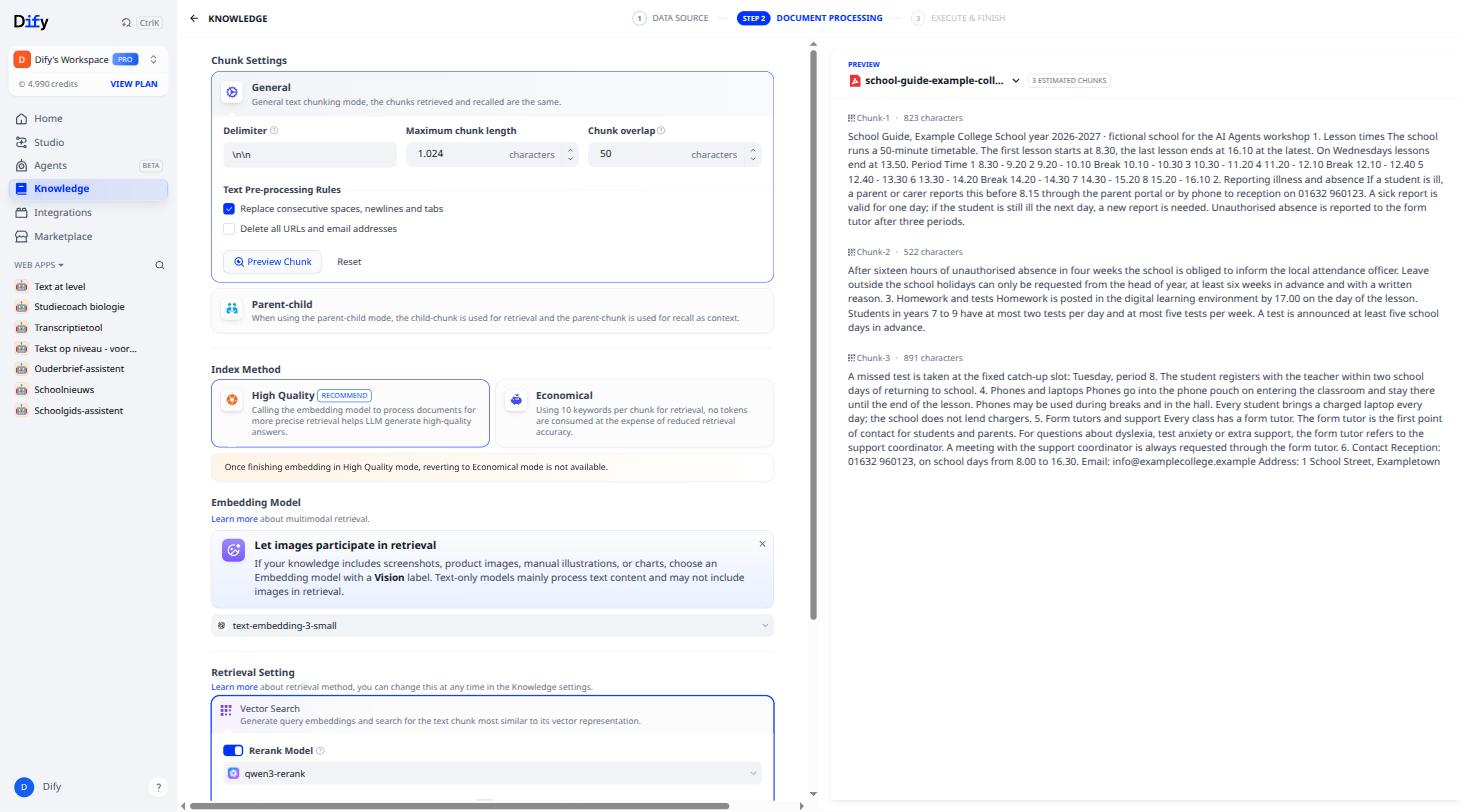

- Click Preview Chunk again. On the right you now have three pieces of a few paragraphs each.
- Leave Maximum chunk length (1024) and Chunk overlap (50) as they are.
- Under Index Method leave High Quality selected.

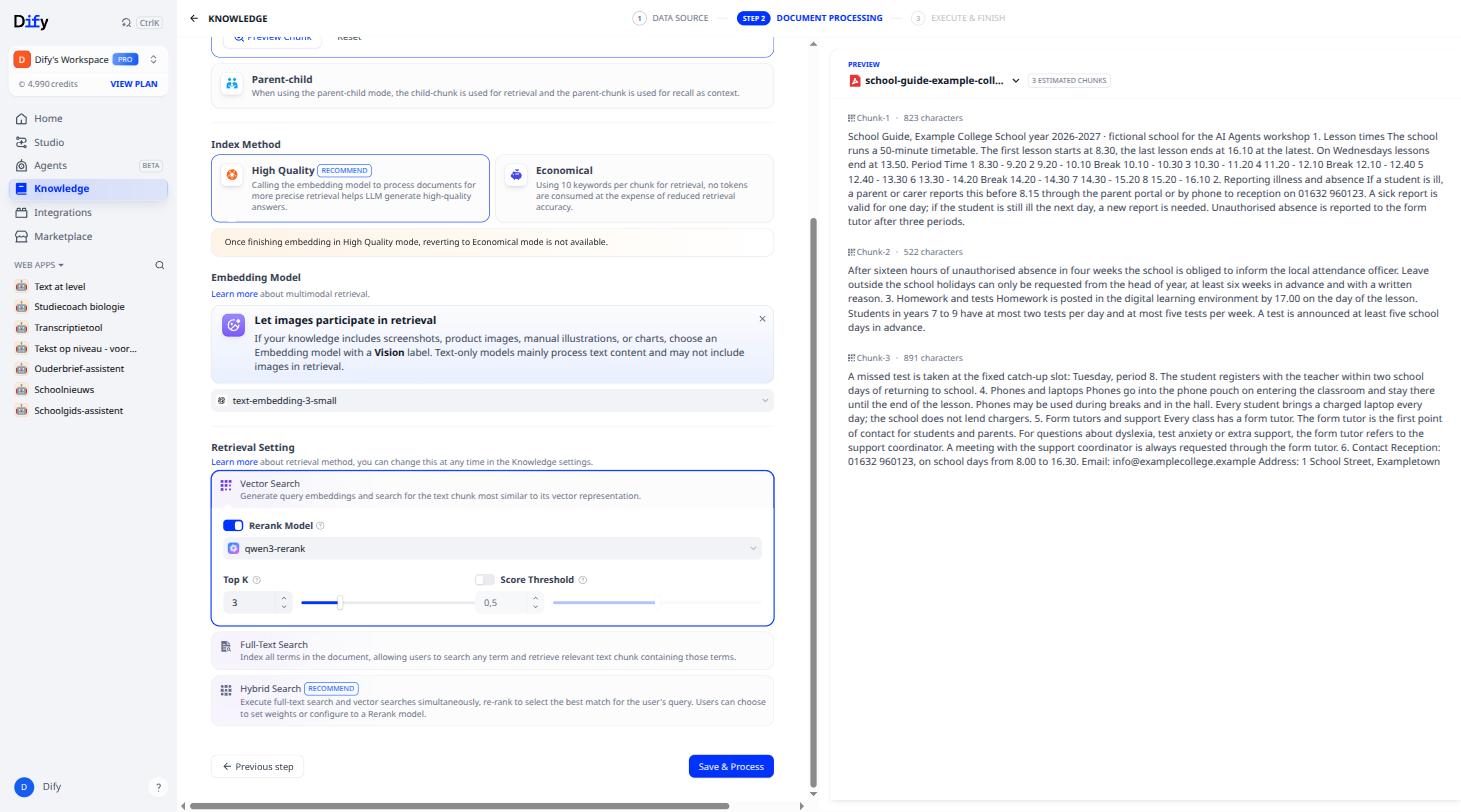

- Scroll down. Leave Embedding Model and Retrieval Setting at their defaults.
- Click Save & Process.

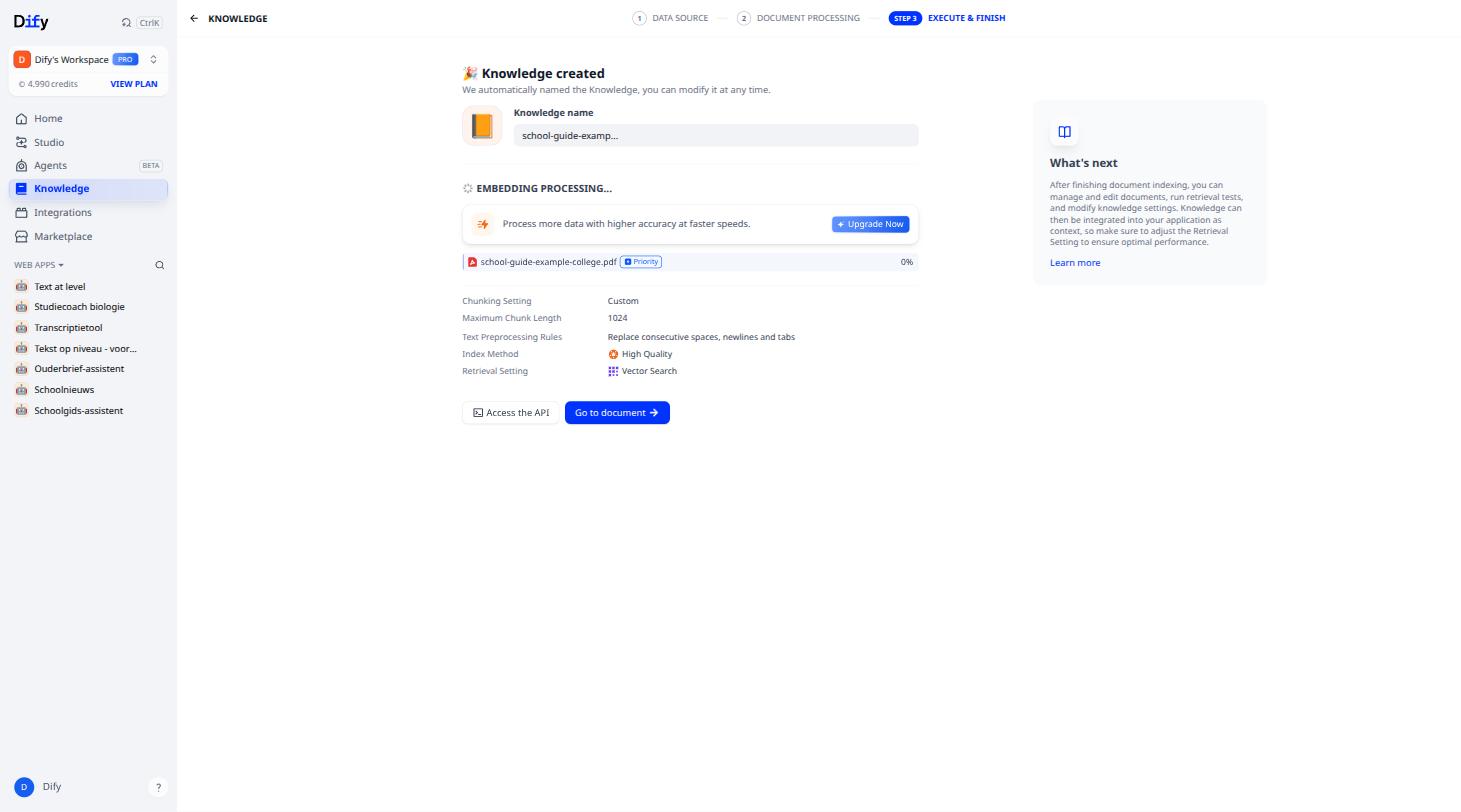

Step 3. Wait until processing is finished
For a two-page document this takes a few seconds. The status jumps from EMBEDDING PROCESSING to EMBEDDING COMPLETED with a green tick behind your file.

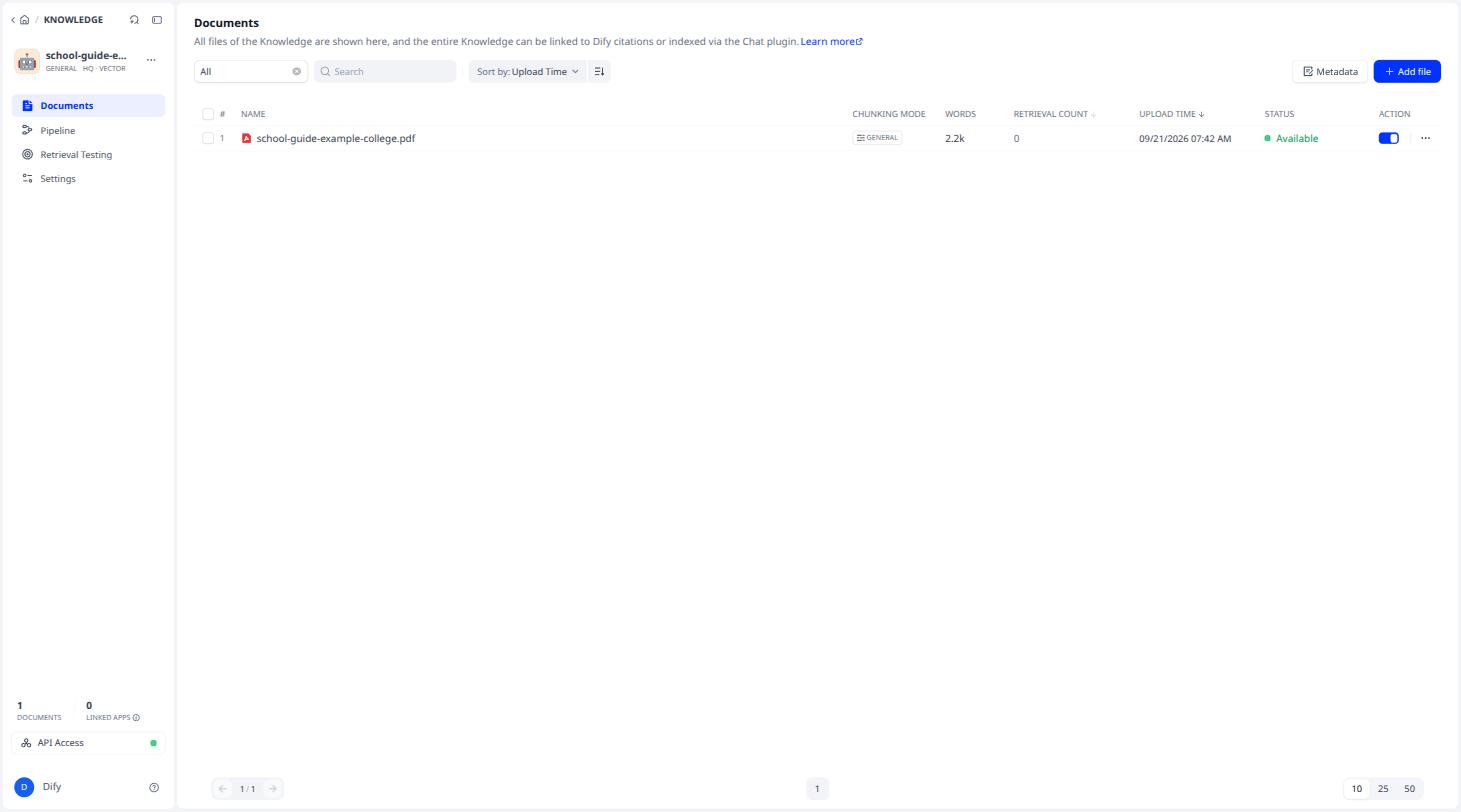

- Click Go to document. You see your document in the list with status Available.

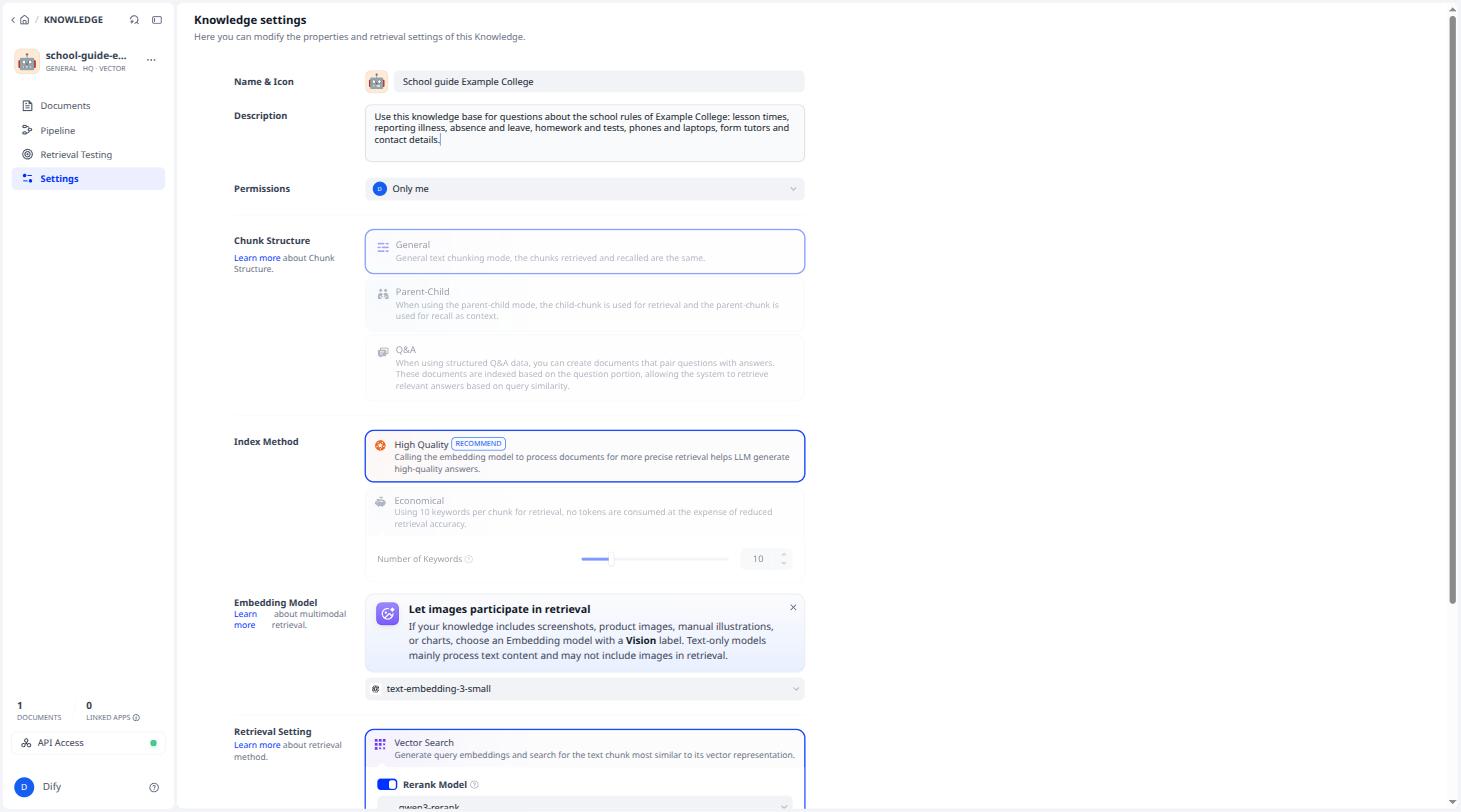

Step 4. Give the knowledge base a name and a description
The description is not just for you. The agent reads it to decide whether to consult this knowledge base. A good description therefore says what the knowledge base is about.
- Click Settings in the left-hand menu.
- Fill in the two fields.
| Field on screen | What you type |
|---|---|
| Name & Icon | School guide Example College |
| Description | see the box below |
Use this knowledge base for questions about the school rules of Example College: lesson times, reporting illness, absence and leave, homework and tests, phones and laptops, form tutors and contact details.

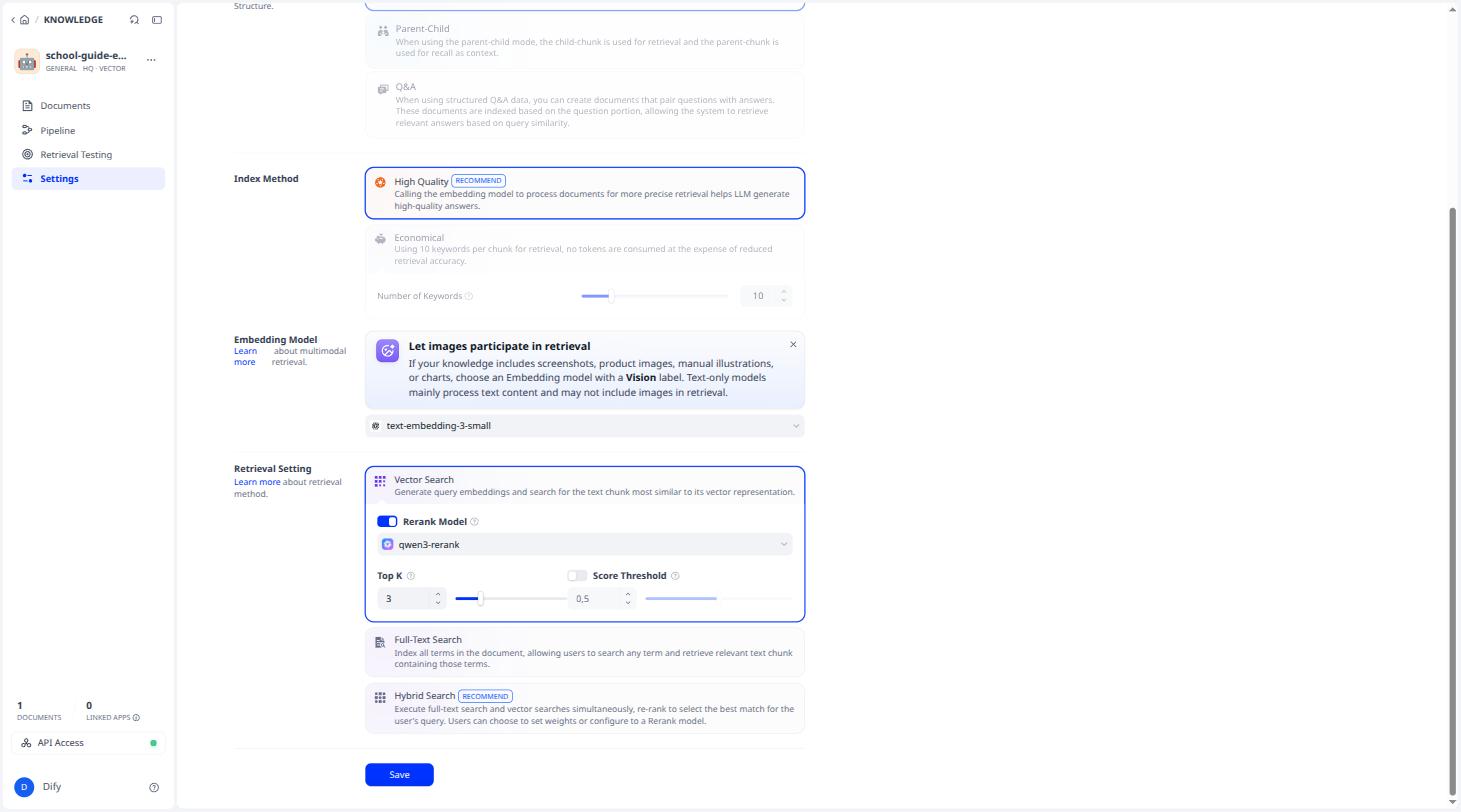

- Scroll all the way down and click Save.
Step 5. Test whether the knowledge base finds the right piece
This is the moment you see what a knowledge base does: you ask a question and get not an answer, but the pieces of text that best match your question. Later the agent turns those into an answer.

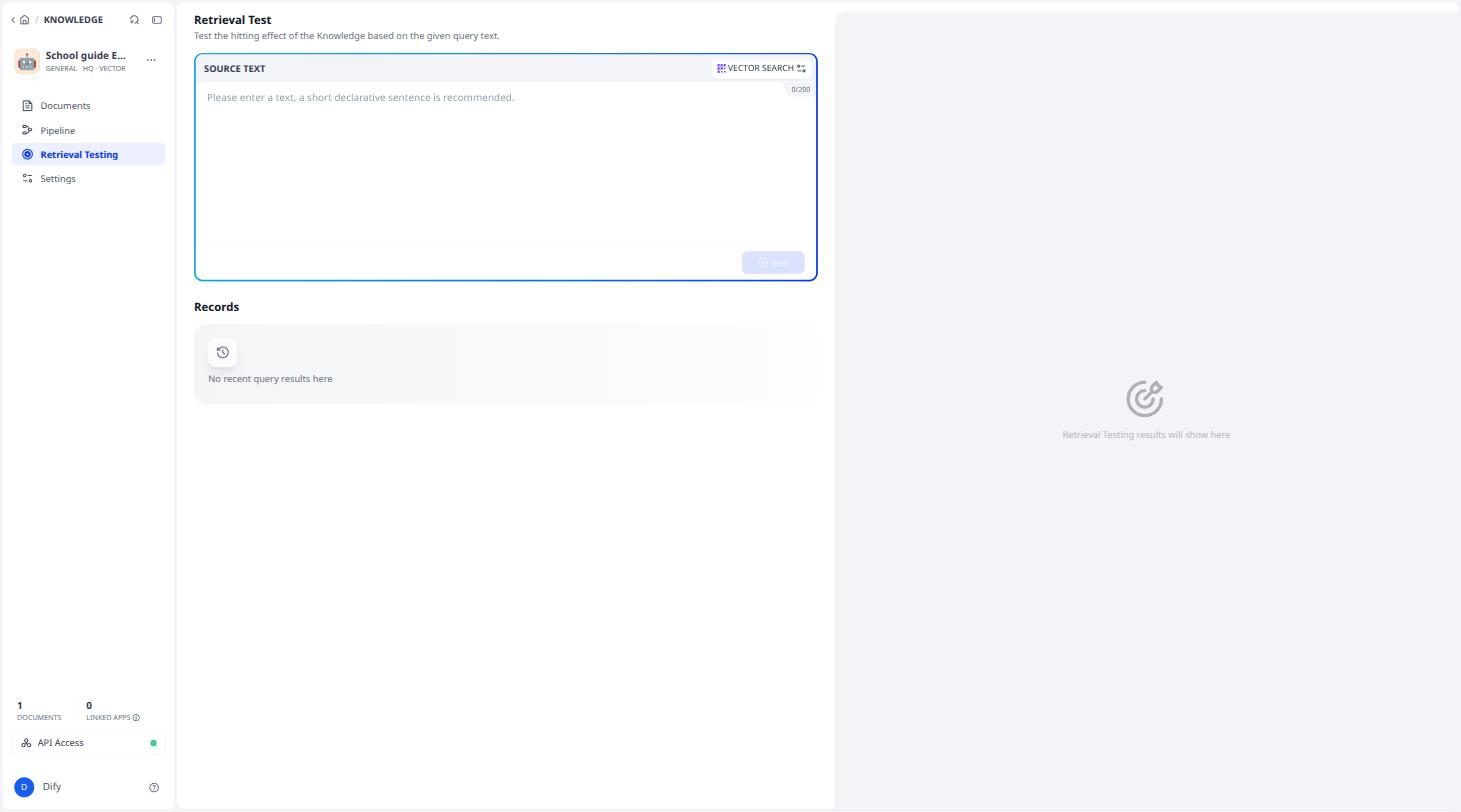

- Click Retrieval Testing in the left-hand menu.
- Click in the SOURCE TEXT field and type a question.
By what time do I have to report my child sick?
- Click Test.

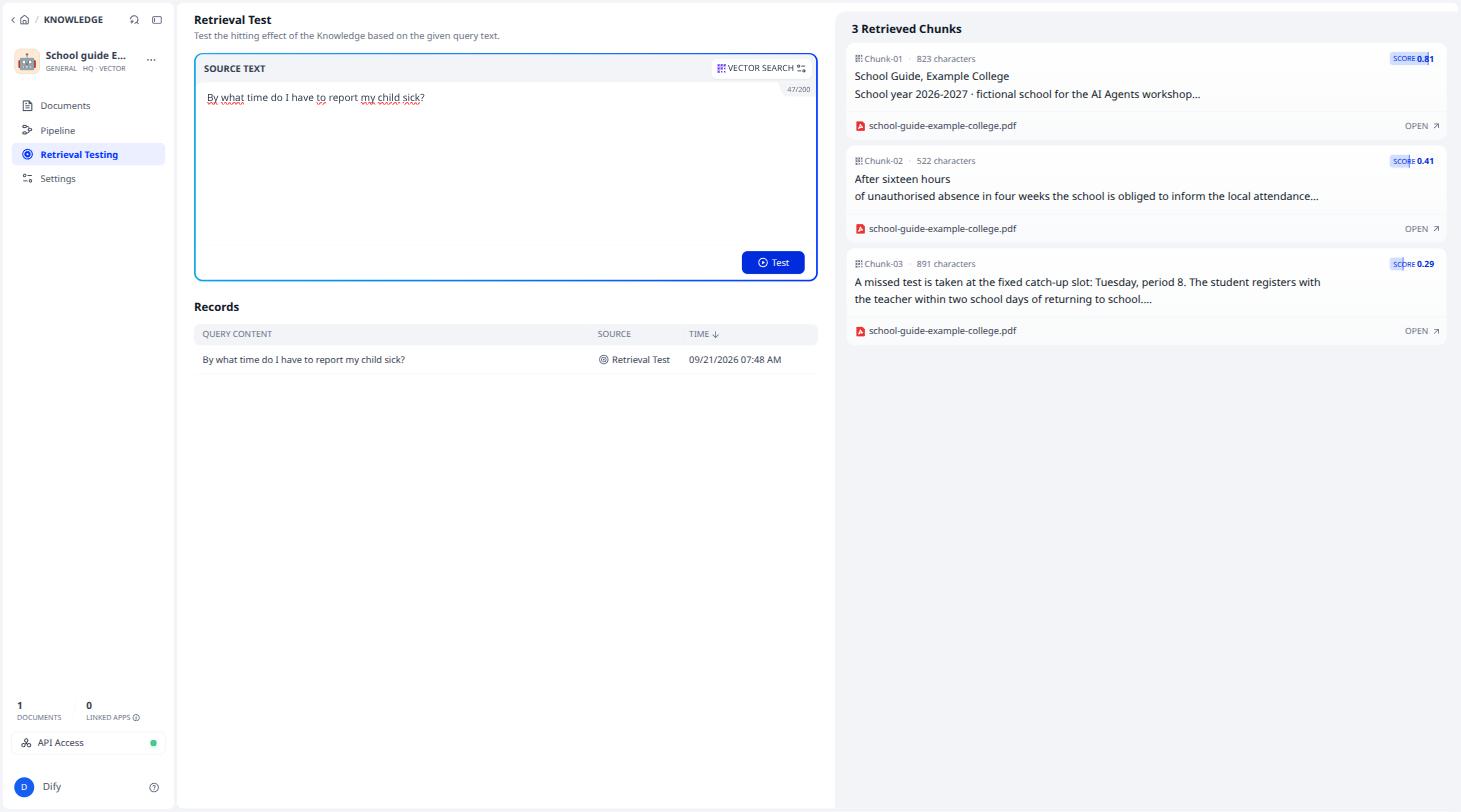

On the right are the retrieved pieces with a score. The piece with the sick-report rules is at the top with 0.81; the other two score low. That is how it should be. If the right piece is missing, go back to step 2 and check whether the pieces are large enough.
Part B. The agent

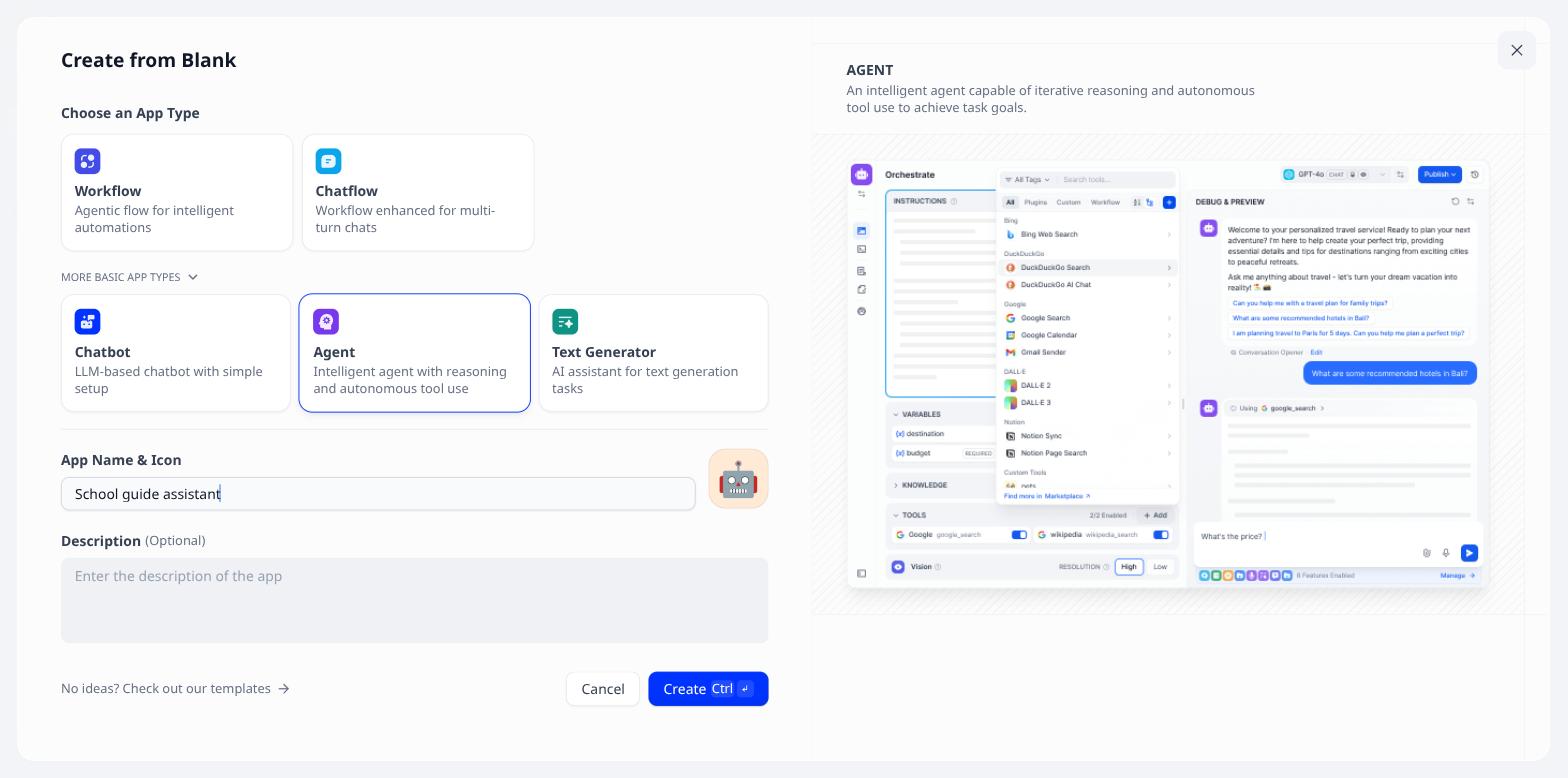

Step 6. Create the agent
- Click Studio in the left-hand menu.
- Click Create at the top right and choose Create from Blank.
- Click MORE BASIC APP TYPES.
- Click Agent.
- Fill in the name.
| Field on screen | What you type |
|---|---|
| App Name & Icon | School guide assistant |
- Click Create.

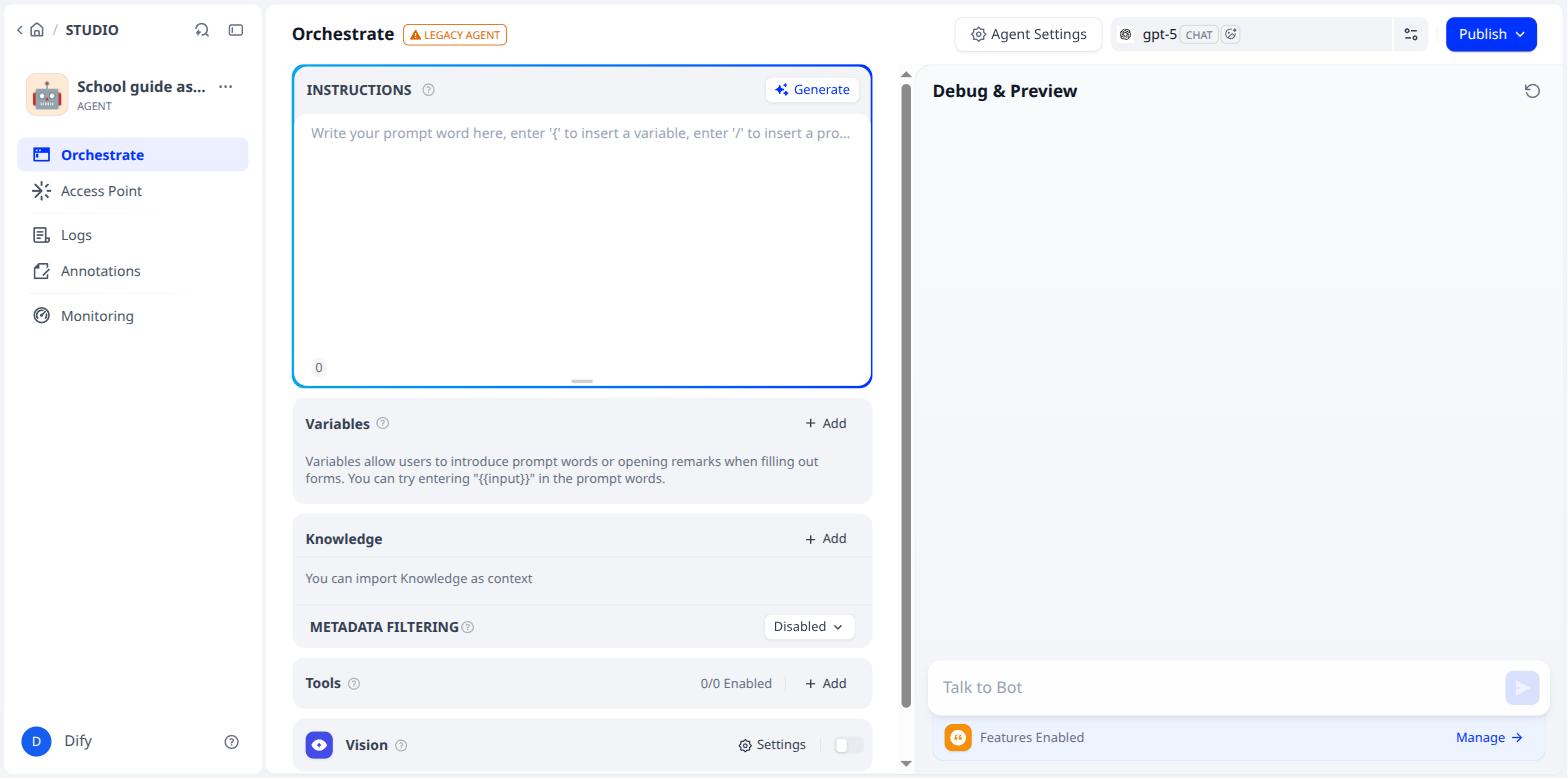

Next to "Orchestrate" there is an orange label LEGACY AGENT. Do not be alarmed; the agent works fine. What it means is explained in the box "About the LEGACY AGENT label" at the end of this guide.

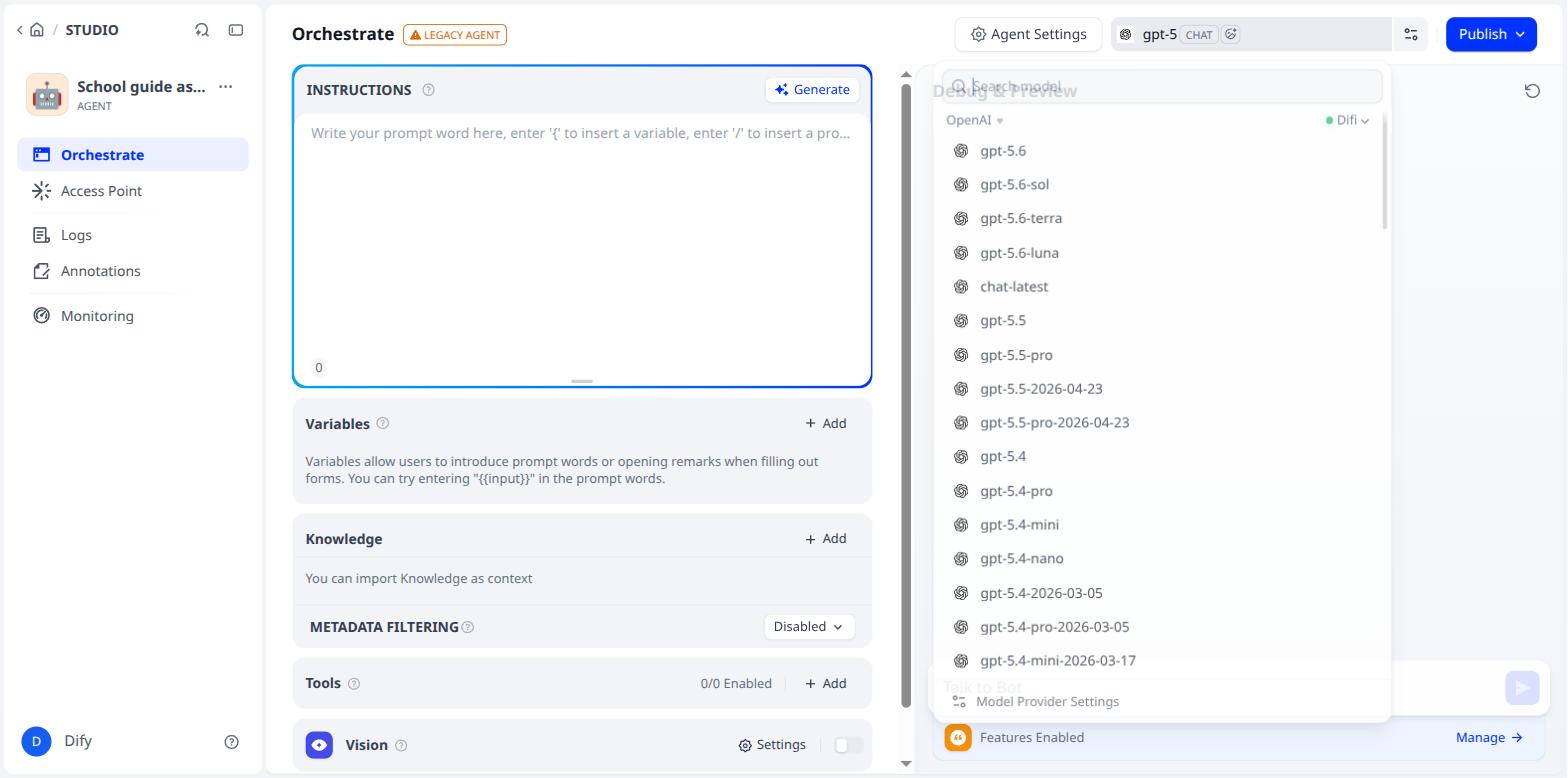

Step 7. Set the model to gpt-5-mini
Here too the model defaults to gpt-5, and here too that is five times more expensive than necessary.
- Click the model name gpt-5 at the top right.
- Choose gpt-5-mini.

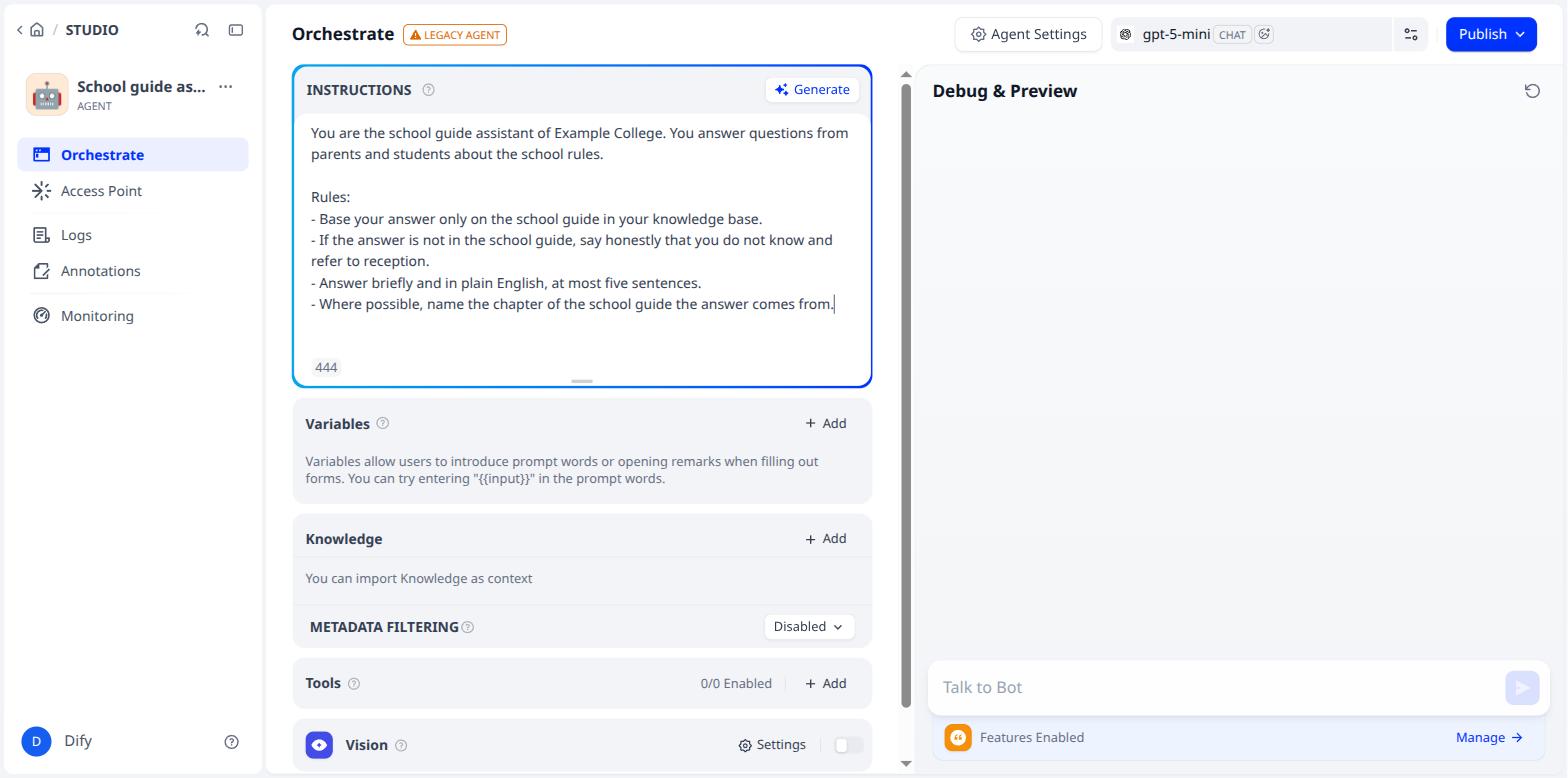

Step 8. Write the instruction
In a workflow you wrote a prompt per step. An agent gets one instruction: who it is, what it may do and what it may not do. The rules about "only from the knowledge base" and "say so when you do not know" are the most important; without them it happily makes things up.
- Click in the INSTRUCTIONS field.
- Type the instruction.
You are the school guide assistant of Example College. You answer questions from parents and students about the school rules.
Rules:
- Base your answer only on the school guide in your knowledge base.
- If the answer is not in the school guide, say honestly that you do not know and refer to reception.
- Answer briefly and in plain English, at most five sentences.
- Where possible, name the chapter of the school guide the answer comes from.
Your choice: role, rules and tone. The first sentence sets the role ("school guide assistant", "exam helper", "onboarding buddy for new colleagues"), the rules set the behaviour. Always keep the two rules about the knowledge base and about "say that you do not know"; change the rest. Want the agent to address students informally and parents formally? Say so. Want it to always end with "Is that right, or do you want to know more?" Say so. Want answers in another language when the question is in that language? One more line.

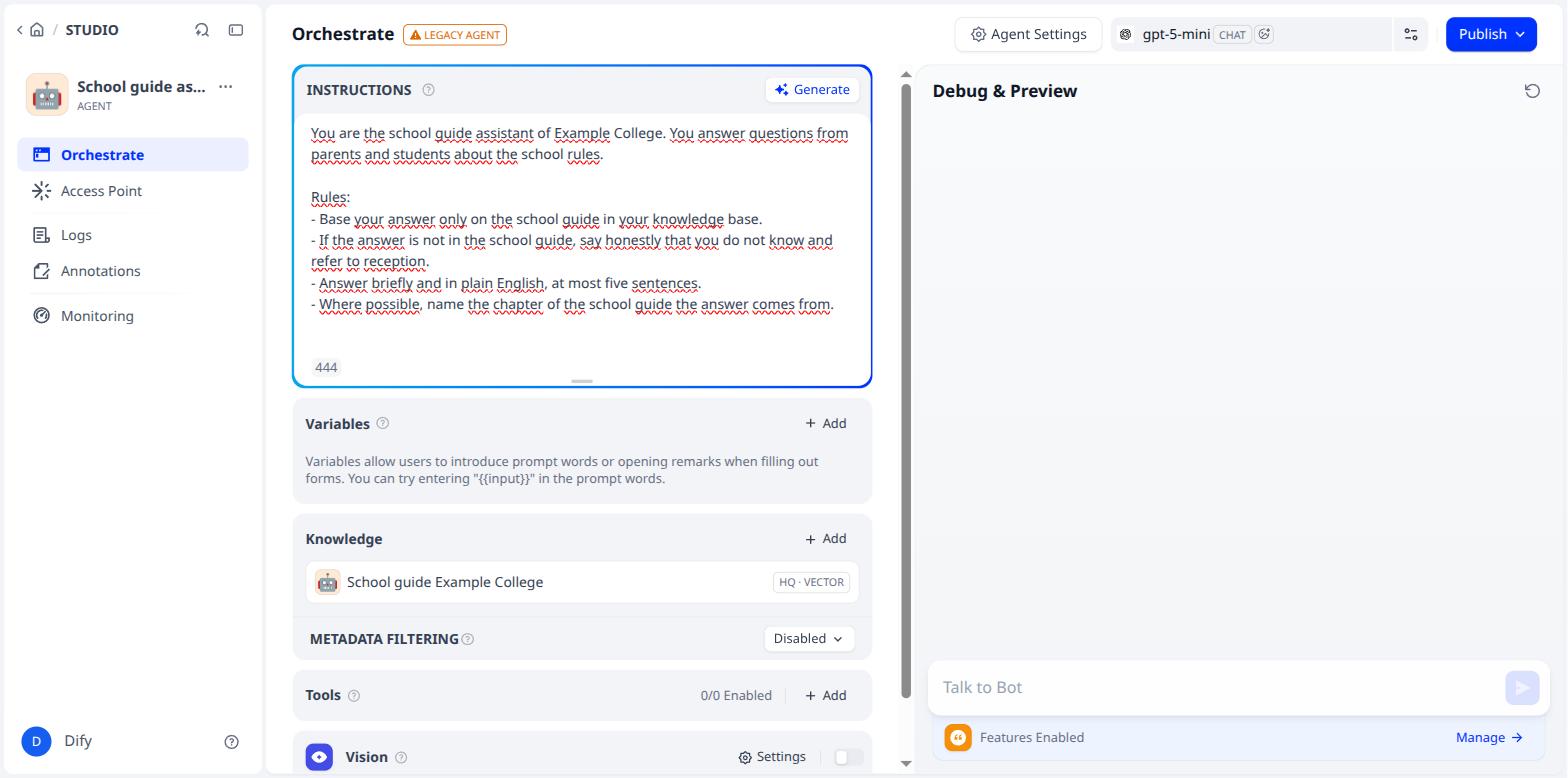

Step 9. Attach the knowledge base

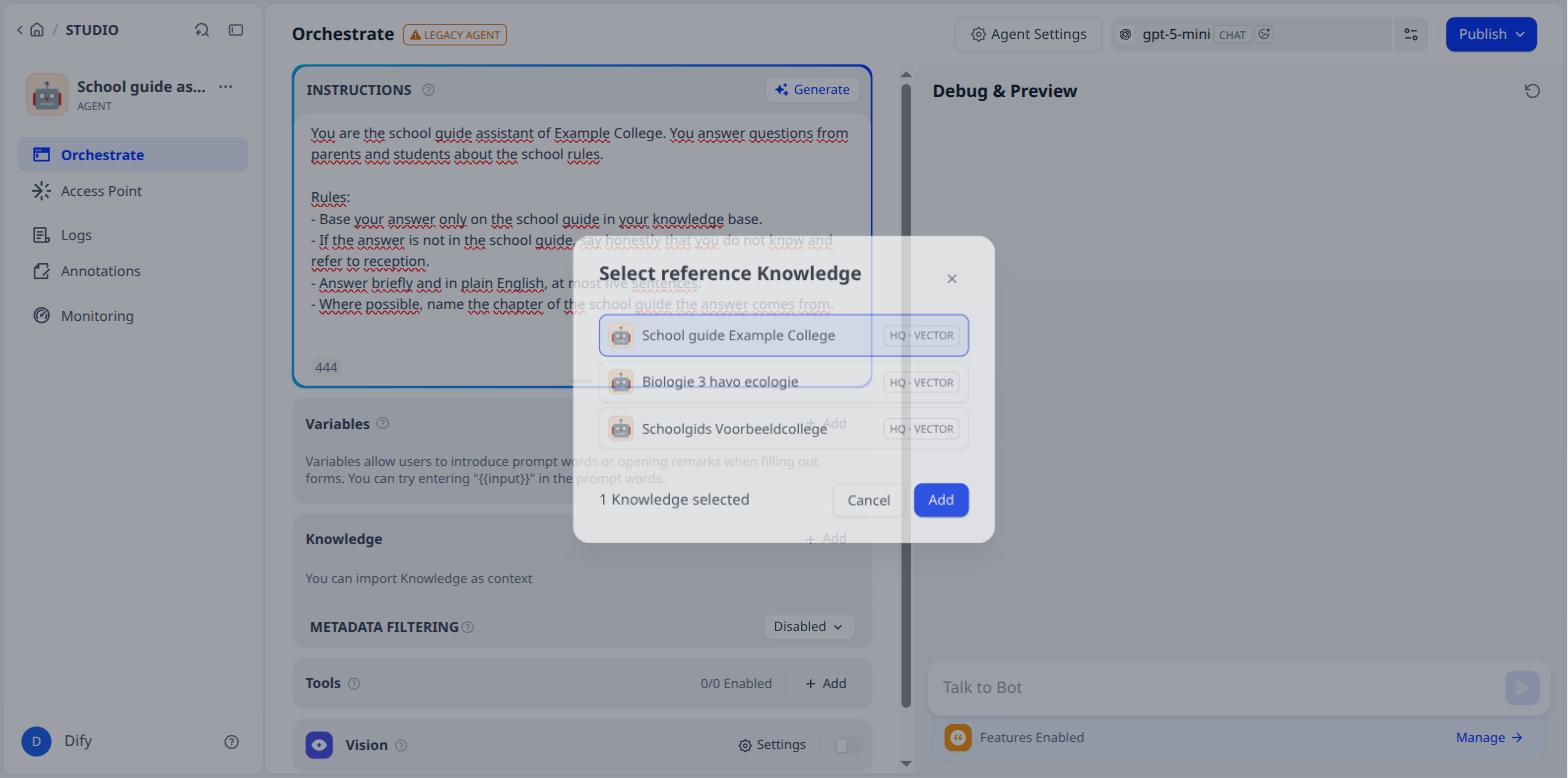

- Under Knowledge, click Add.
- Click School guide Example College. At the bottom "1 Knowledge selected" appears.
- Click Add.
Step 10. Test the agent
On the right is Debug & Preview: a chat window in which you talk to the agent before it goes live. Ask two kinds of question: one that is in the document, and one that is not.

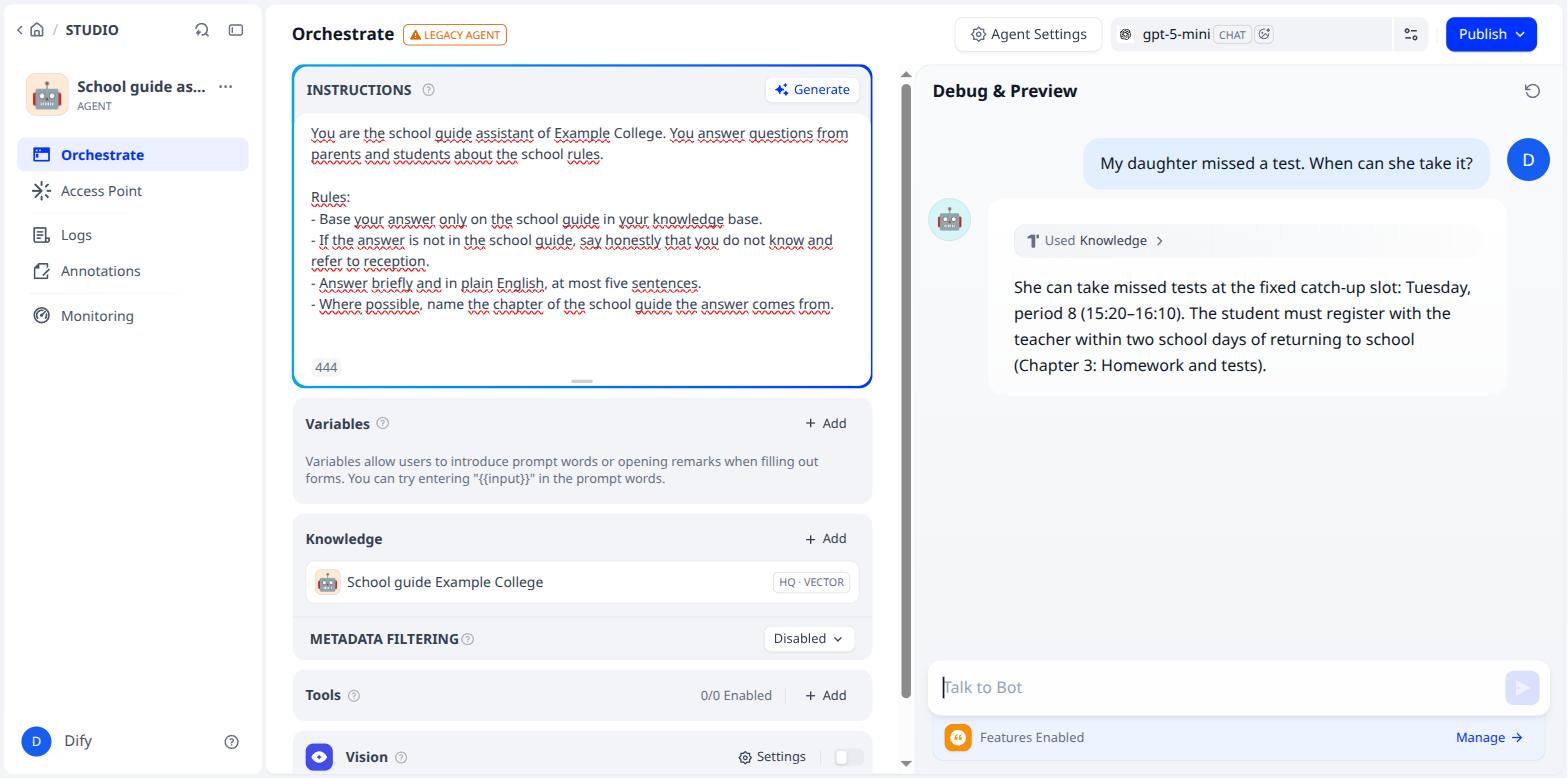

- Click Talk to Bot at the bottom and type the first question.
My daughter missed a test. When can she take it?

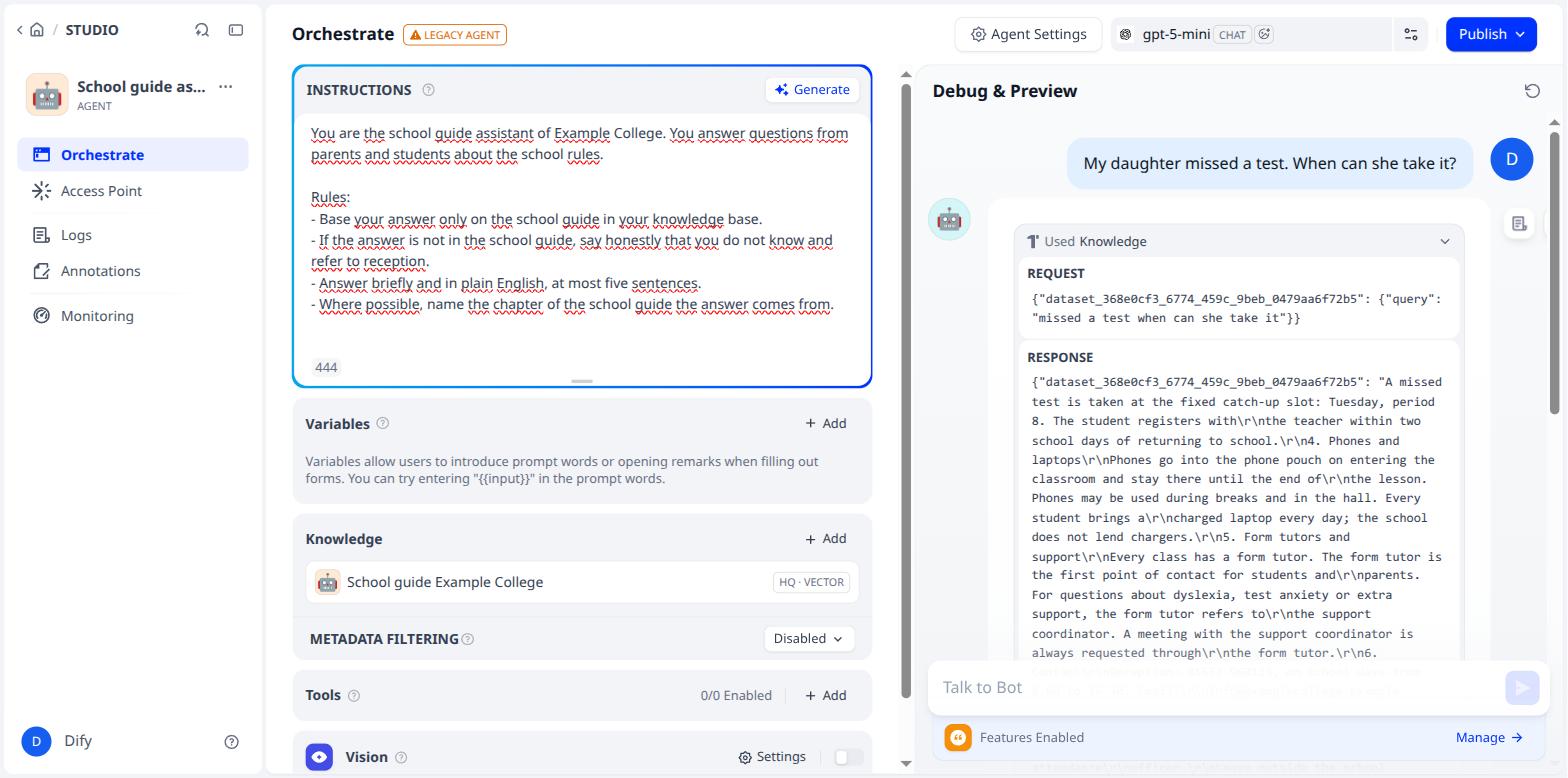

- Press Enter and wait. Above the answer the label Used Knowledge appears.
- Click Used Knowledge to expand it.
Look at REQUEST. That is the search query the agent formulated by itself, something like "missed test catch up when can she take it". You did not tell it to search, nor what to search for. It decided that itself, based on your question and the description of the knowledge base. That is the difference from the workflow in guide 1.
- Collapse the label again and type the second question.

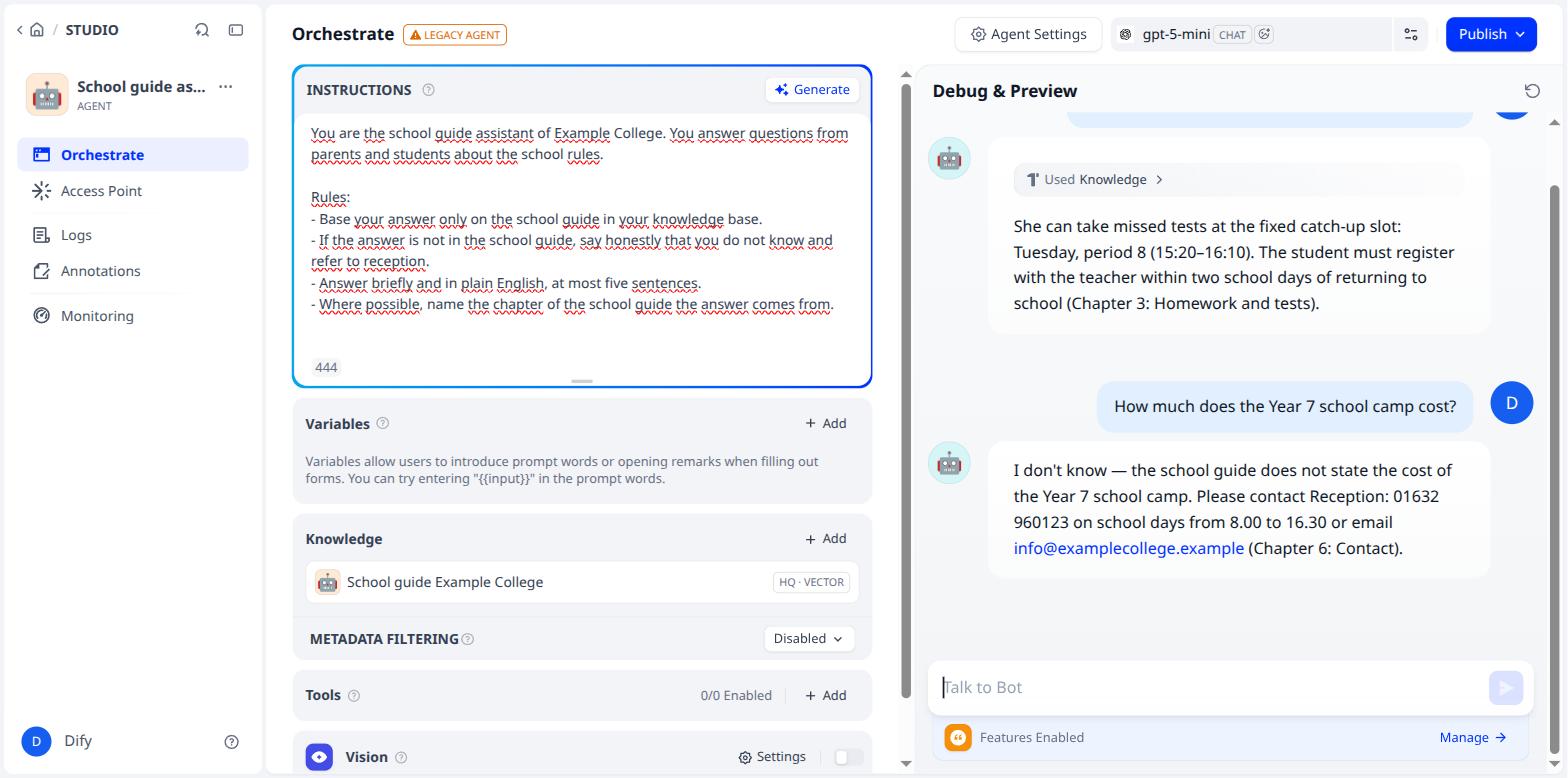

How much does the Year 7 school camp cost?
- Press Enter.
The agent says it is not in the school guide and refers to reception. That is because of the second rule in your instruction. Remove that rule and try again: you get a neatly invented amount.
Step 11. Publish the agent

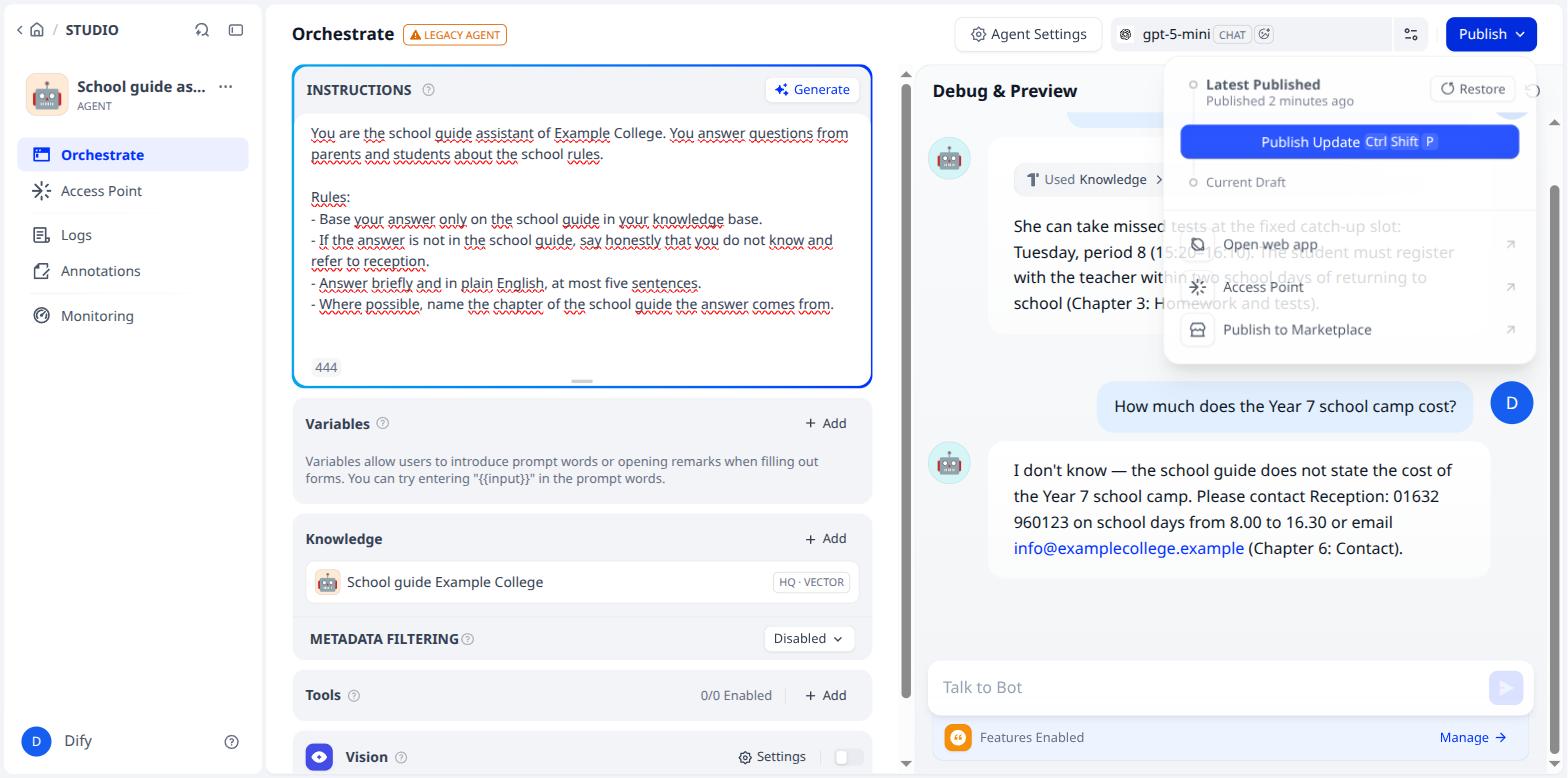

- Click Publish at the top right.
The menu says "Latest Published, published a few minutes ago", even though you have not published anything yet. Dify publishes an Agent app when it is created, so empty. The version with your instruction and knowledge base is under Current Draft. If you skip Publish Update, the webapp opens an agent without knowledge.

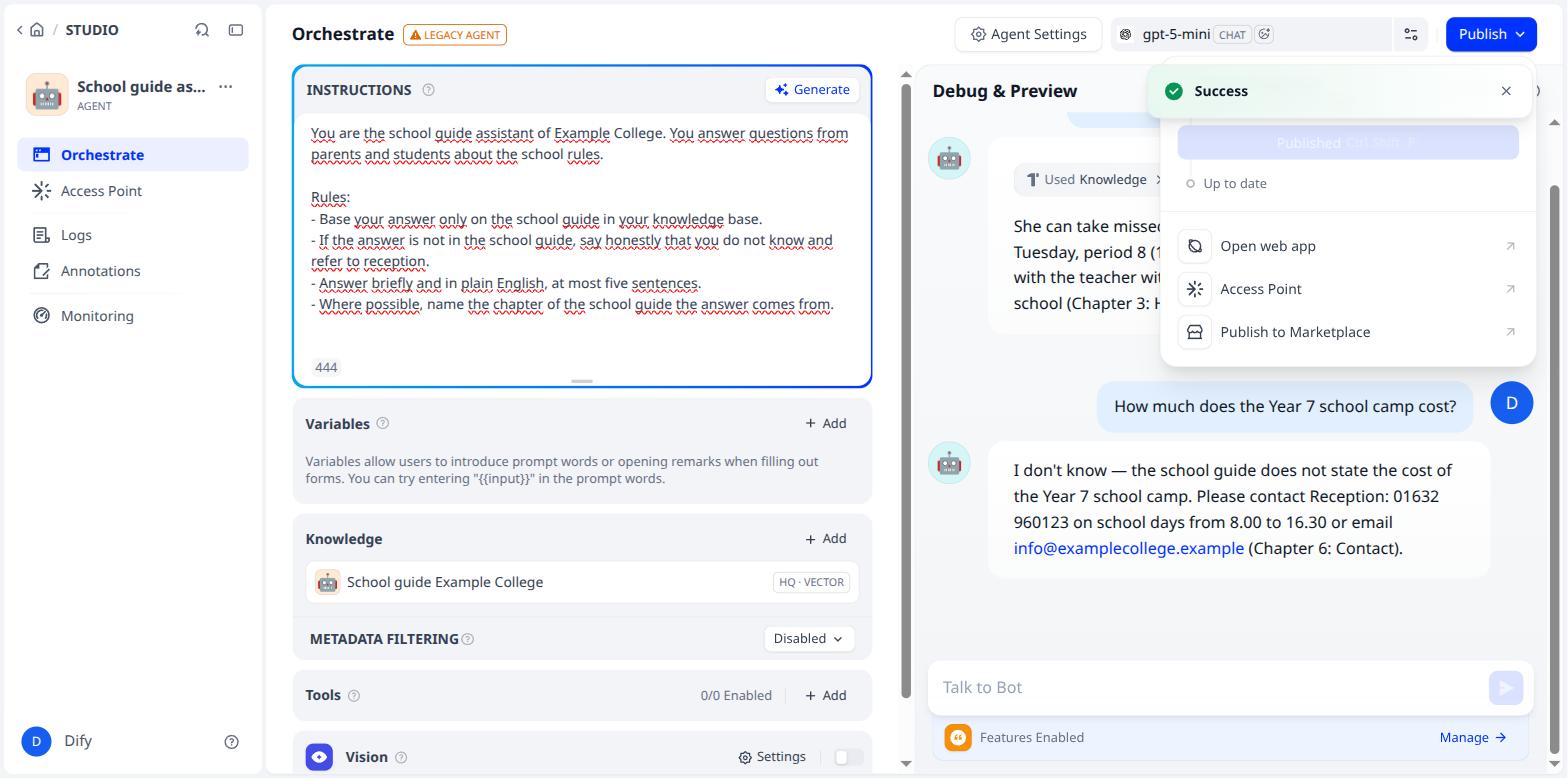

- Click Publish Update. The message "Success" appears and below the button it now says "Up-to-date".

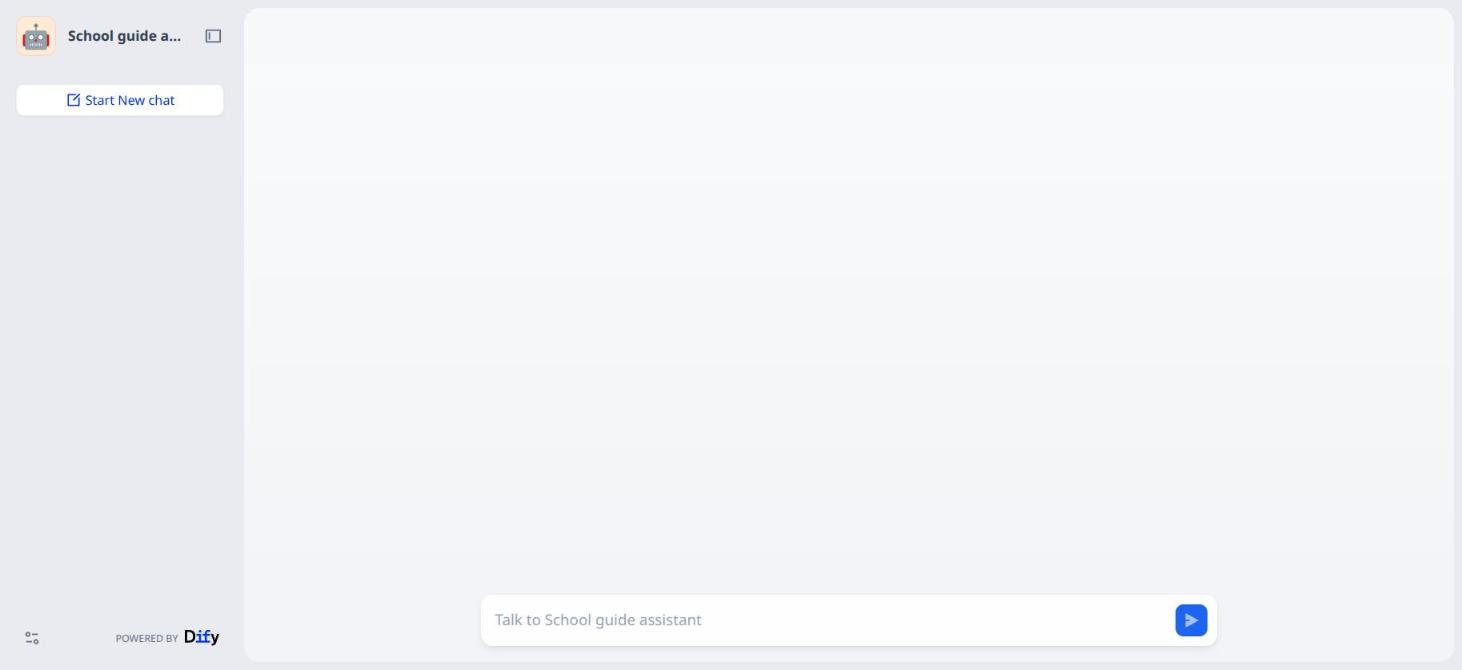

- Click Open webapp.
- Type a question to check that the published version uses the knowledge base.

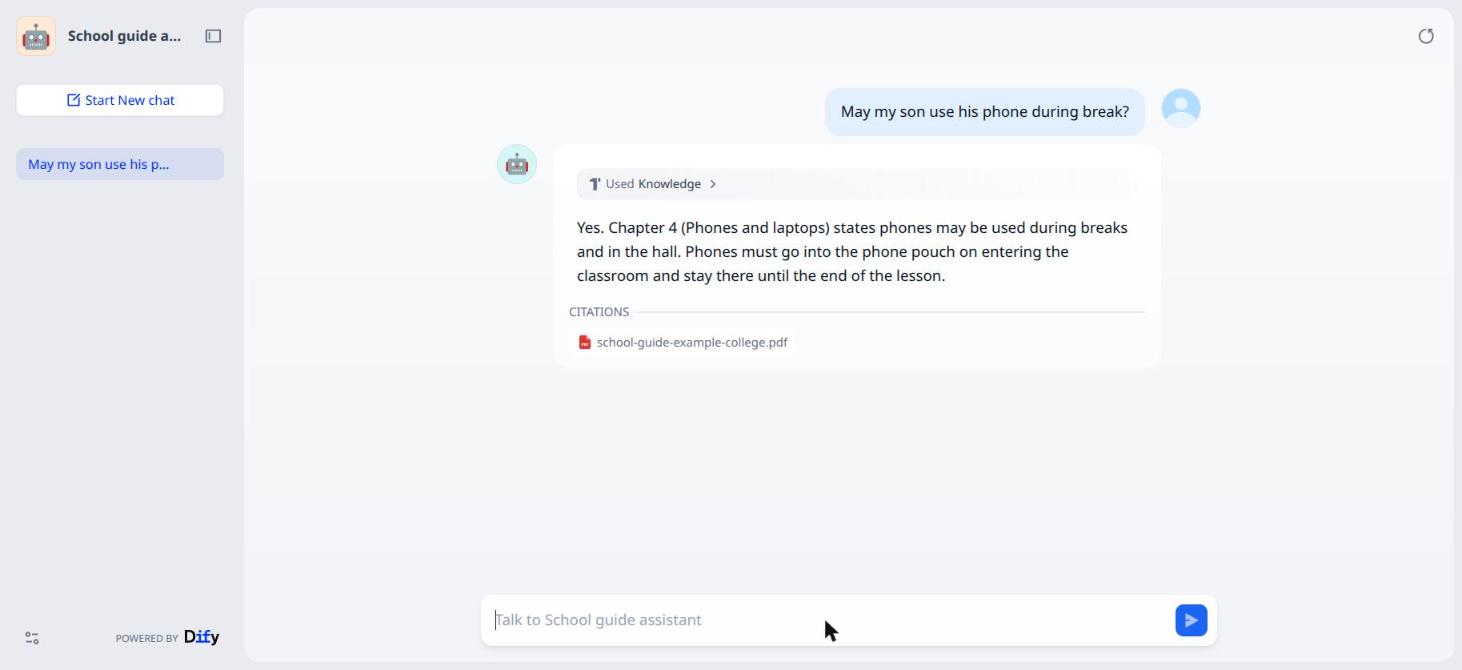

May my son use his phone during break?
Below the answer is CITATIONS with the name of your document. That is the link you give to your test partner; it works without logging in, on a phone too.
The agent in this guide is live at https://udify.app/chat/6Y6WnP0m5Z3jSHRs. Open it to see what you are working towards.
Checking that it worked
- Under Knowledge your knowledge base has status Available and a preview of at most a handful of pieces per page
- Retrieval Testing puts the right piece at the top for a question from the document
- The agent answers a question from the document with Used Knowledge above it
- The agent says it does not know for a question outside the document
- The webapp link shows CITATIONS below the answer
When things go wrong
| What you see | What is going on |
|---|---|
| Preview Chunk shows dozens of one-line pieces | The Delimiter is \n. Set it to \n\n (step 2) |
| Retrieval Testing does not find the right piece | Pieces too small or too large. Back to step 2; for a large document raise Maximum chunk length |
| The agent answers without Used Knowledge, even for questions from the document | Knowledge base not attached (step 9), or the Description of the knowledge base is empty or meaningless (step 4) |
| The agent invents answers | The rule "If the answer is not in the school guide..." is missing from the instruction |
| The webapp answers without knowledge while Debug & Preview does use it | Publish Update not clicked; the webapp is still running the empty version from creation |
| Your credits drop fast | The model is still on gpt-5. Set it to gpt-5-mini (step 7). An agent answer costs 6 to 7 credits anyway |
| On upload: "Maximum 1 files" | Sandbox limit. One file at a time; add a second one afterwards with Add file |
| A message that the temperature parameter was removed | The model does not support it. Ignore it |
About the LEGACY AGENT label

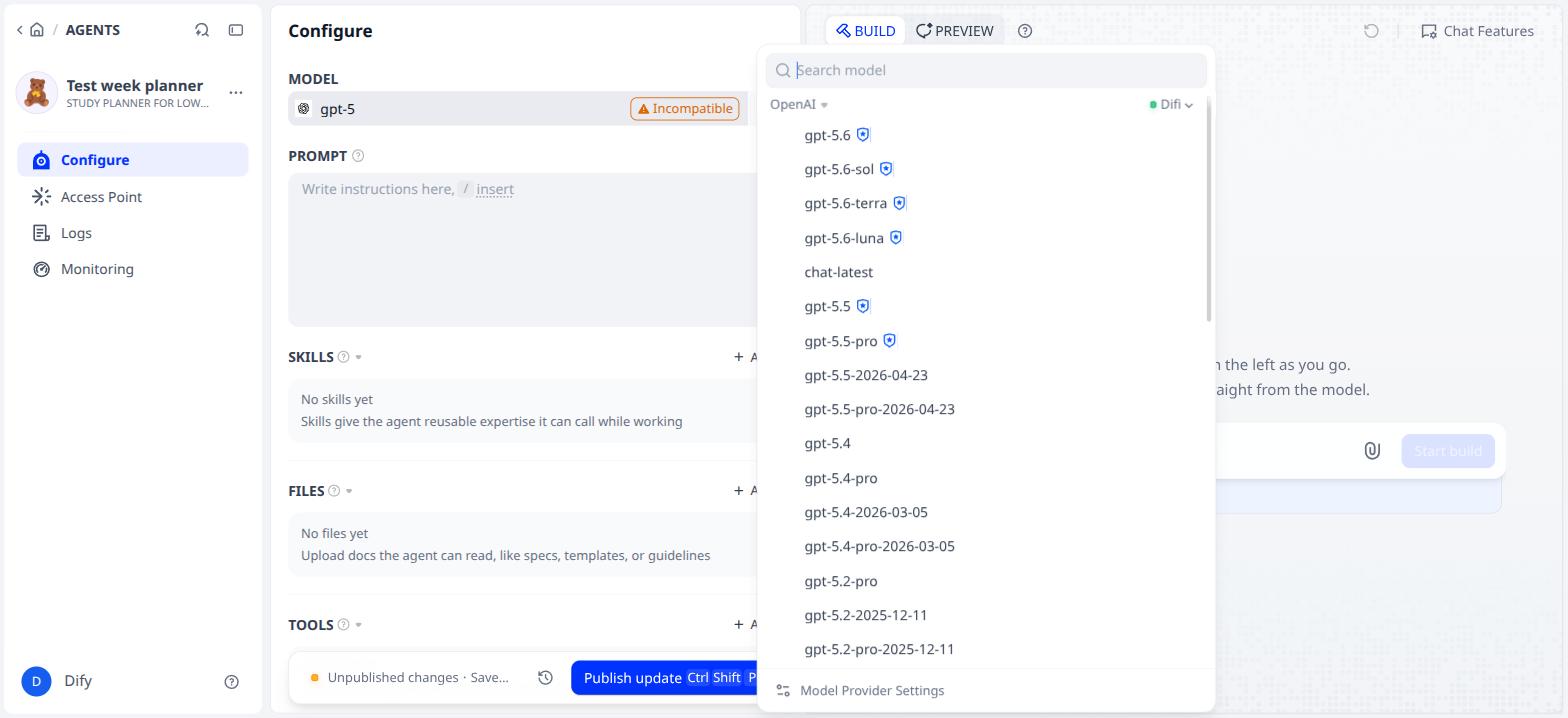

Dify is currently building a new way of making agents: the Agent Console, found in the left-hand menu as Agents with the label BETA. The Agent app you built in this guide is therefore called "legacy": Dify wants you to take the new route eventually.
We looked at that new console on 20 September 2026 and deliberately did not choose it for this guide:
- gpt-5-mini is not available there; gpt-5.6-luna, Claude Opus 4 and Gemini 3.5 are, all more expensive in credits;
- there is no link to a knowledge base; the agent reads loose files in a sandbox environment;
- the page does not render stably yet and the texts switch between languages.
For a workshop with sandbox accounts the Agent app in Studio is the reliable route. What you learn in it, instruction, knowledge base, testing and publishing, still applies in the new console; only the buttons move. Guides 4 and 6 show the Agent Console in action.
Make it yours
The school guide is invented and the assistant is an example. This chapter helps you rebuild the agent for your document, your audience and your tone. From easy to hard.
| Change | Where | Difficulty | What you get for it |
|---|---|---|---|
| A different document | Part A, steps 1 to 4 | easy | An agent about something people at your school really ask about |
| Name and description of the knowledge base | Step 4 | easy | An agent that knows when to search |
| Role, tone and form of address | Step 8, instruction | easy | An assistant that sounds like your school |
| An opening line and example questions in the webapp | Debug & Preview → Manage (at the bottom) → Conversation Opener | easy | Users immediately know what they can ask |
| A second document in the same knowledge base | Part A again, via Add file | medium | More questions answered well; mind the description |
| Two knowledge bases (for example students and staff separately) | Step 9, Add twice | medium | A clear separation; in the instruction you say when to use which |
| Enforcing source references ("always name the chapter") | Step 8, instruction | medium | Answers you can check |
| Adding tools (date, calculation, web search) | Tools on the same screen | hard | An agent that can do more than read; see guide 4 |
Three assignments
- Your document, your questions. Make a knowledge base from a document of your school. Write down five questions users really ask beforehand, plus one question you know is not answered in it. Test all six in step 10. If the sixth gets an invented answer, your instruction is not strict enough yet.
- Two audiences, one agent. Make the agent answer differently for students (informal, short) and parents (formal, a bit fuller). Solve it in the instruction first ("If the question seems to come from a parent..."). If that does not work reliably, add a Variable (the Variables block under the instruction) so the user chooses.
- Let a colleague break it. Give the link to someone who knows the document well and ask them to catch the agent making mistakes. Read the Logs. Is it the splitting (step 2), the description (step 4) or the instruction (step 8)? Change one thing, Publish Update, and test again.
Checklist before you use your own material
- The document contains no names, addresses, grades or other personal data
- The document belongs to the school and may sit with an external processor (Dify runs in the cloud)
- The document is the current version, and there is one owner who uploads a new version when it changes
- You have decided who gets the link; for students or parents, involve the data protection officer first
- The model is set to gpt-5-mini and you know an answer costs 6 to 7 credits without your own key
- The instruction says what the agent must do when it does not know, and you have tested that
What next
Your agent can now read. The next step is that it can do something: search the web, calculate, know the date, or call a workflow from guide 1 as a tool. You arrange that under Tools on the same screen. That is guide 3.
